Side Mount Lizenz support R9T
€199.00*
Pick your accessory
from €309.00*
from €449.00*
€19.99*
| Product number: | CB11929.8 |
| item number: | KRT-R9T-KZH-S-01-US |
Product information "Side Mount Lizenz support R9T"
Three-part license plate holder made of 3mm aluminium or stainless steel for all BMW R nineT models, from our friendly company KRT Framework.
As well as all parts, which come from KRT, also the lateral license plate holder is of the highest quality and absolutely perfectly designed.
The delivery includes all mounting materials and a license plate light.
The two aluminium support plates allow an assembly where screws and cables disappear.
Long holes paired with three different hole patterns allow the assembly in your desired position (side and height is adjustable).
There is the license plate holder with different plates for the countries (Germany, Austria, Switzerland, France, Holland, Belgium. Please choose in the selection).
Dimensions of the license plates for the different countries:
Germany: 180 x 200 mm
Switzerland: 180 x 140 mm
Austria: 210 x 170 mm
France: 210 x 130 mm
Netherlands: 210 x 140 mm
Belgium: 210 x 140 mm
Italy: 177x177 mm
Spain: 220x160 mm
USA: 178x102 mm
| Models BMW R nineT: |
|
|---|
| BMW R nineT |
R nineT /5 EU 4
R nineT Classic EU 3
R nineT Classic EU 4
R nineT Classic EU 5
R nineT Pure EU 4
R nineT Pure EU 5
R nineT Racer
R nineT Scrambler EU 4
R nineT Scrambler EU 5
R nineT Urban GS EU 4
R nineT Urban GS EU 5
|
|---|---|
| BMW R12 |
R12 Crusiser
R12 nineT
|
0
0
0
0
There aren't any asked questions yet.
Zubehörartikel
LED Stripe Tail Tidy BMW R9T
CB12076M / -10
From
€309.00*
Classicbike-Raisch LED Stripe rear suitable for all BMW R nineT models. Street legal!
The LED Stripe rear is the most noble & elegant rear for nineT models that we have in our range.The rear of your nineT is given a minimalist & modern look with this kit, through the filigree milling bracket and the modern LED strip & completely legal! The tail light with breaklight is with E-number and the tail complies with all StvO standards. Here nothing needs to be registered with the TÜV. Simply attach & enjoy.
The LED bracket milled from aluminum fits perfectly to all BMW original seats as well as the BMW hump. A perfect fit on all seat benches is guaranteed by the spacer kit, which is included. This kit contains different spacers to distance the height of the milling bracket perfectly to the respective installed seat. The kit of course also works with numerous seat benches from the accessories, such as the Cool Seat from our range.Also with the passenger pillion frame everything fits perfectly.
The bracket for the LED strip is milled from an aluminum block in Germany and then anodized deep black. The LED strip (with E-number) is then glued into the milling bracket. This makes the part look like it was cast from one piece.
Included in the kit is an aluminum underbody plate, which replaces the original plastic shell. For the R nineT Euro 4 & 5 models, the plastic box for the control unit is also replaced. This is unsightly on the one hand because it is made of plastic and on the other hand because it builds up very low and thus disturbs the line of the rear area. Through the new aluminum sheet you no longer look from the side on the edge of the box & the rear gets a perfect line.
The scope of delivery includes all materials, such as screws, cable ties, heat shrink tubing, connectors, etc., as well as a very detailed step by step instructions to ensure easy & problem-free installation.
To buy the kit reduced in the set, simply below the description, the accessory items such as turn signals, reduced order.
License plate holder: The kit is delivered WITHOUT a license plate holder.
Since the kit looks just awesome with both a central and a side license plate holder! Our recommendations:Variant 1: License plate holder HeckWeck R9T / This holder is mounted centrally under the rear and was developed specifically for the LED Stripe rear (StvO compliant does NOT need to be registered). This is the holder, which is also mounted on some product photos.Variant 2: License plate holder HeckWeck R9T - Short / This holder is mounted as in variant 1 centrally under the rear and was developed specifically for the LED Stripe rear (StvO compliant must NOT be registered). The difference to variant 1 is that the short version is much shorter and has an adjustment for the angle of the license plate. This allows us to mount the license plate significantly shorter (steeper than 30 °) but for TÜV or controls within a handle to be able to put down to 30°.
Variant 3 Side license plate holder:There are 4 different holders to choose from: 1. the Vario holder: an inexpensive (but still very high quality) holder reduced to the bare essentials (the most inconspicuous of all), which fits all license plate sizes and is variably adjustable in position - must be registered individually.2. the Rizoma holder: Probably the highest quality holder of all. This holder is supplied with a parts certificate and can simply be fitted (does not have to be registered with the TÜV).3. the adjustable bracket: A sophisticated bracket with an aluminum license plate, which also has variable adjustment. Must also be registered by individual approval. 4. The AC-Schnitzer holder: A license plate holder milled from solid material with parts certificate.
Turn signal:
In the milling bracket is on both sides a 8er bore, this allows it to mount any turn signal with an M8 thread. He is held turn signal by a grub screw, which is included.Who does not want to mount a turn signal on the bracket, which can order the turn signal plugs (further down in this description). These then serve as blind plugs for the turn signal hole.
Further down in this description you can order all, to the rear matching turn signals, from our range in the bundle. In the bundle you will automatically be granted a discount of 10% on all turn signals.
Accessories:
Classicbike-Raisch recommends for easier installation still turn signal plugs & tail light plugs.For all those who want to be 100% legal on the road, there is still a reflector as an accessory.To mount the license plate, we recommend the license plate screw set.
All parts you can order below in the description with it.
To buy the kit reduced in a set click on the button "buy this item in a set" above under shopping cart
Luggage:The LED bracket goes to the same mounting points as most luggage systems. Together with the LED stripe rear, the Unit Garage bags can be mounted.
Note on the BMW alarm system: Our base plate does not have any fixing points for the alarm system. If you would still like to have it installed, we recommend attaching the alarm system with double-sided adhesive tape.
Rear frame RBH Tail Kit - R9T
CB12286M / 0
€449.00*
The RBH rear frame kit, for BMW R nineT models, is handmade in Germany by our partner company KRT Frameworks.
The kit visually continues the original round tube frame of the RnineT and closes the rear with a rear round arch frame loop, which gives the RnineT a very unique effect. The original cast aluminum frame triangles are omitted, making the seating area look tidier & narrower. We also have the matching, ready upholstered seat in the program, alternatively we also offer the unupholstered seat base plate, which you can have individually covered by the saddler of your choice (you can find under the accessories in this description).
If you don't want to combine our rear frame with the central RBH license plate holder (see accessories in this description) but with the side holder from KRT, you can attach turn signal holders (included) in the rear area of the enclosed base plate. The base plate has suitable for this in the area of the turn signals cable bushings to lead the turn signal cable hidden upwards.
If you decide for our version without recessed taillight, of course, 3 in 1 turn signals can be used here. The turn signal holders have an 8mm hole, so they are suitable for the common accessory turn signals.In addition, the bottom plate relocates the control unit and the OBD connector located in the front area a bit further up. The integrated brackets ensure a tidy, clearly structured cable routing and hold the components securely in their new place. This allows the bottom panel to be flush with the lower edge of the rear frame.
You can also order the turn signals and other accessories as a set (some parts like the turn signals are then discounted). To buy the kit as a set, you have to click on the button "buy as a set" below the shopping cart button.
As mentioned above, we offer the RBH rear frame in different versions. Besides a version without rear light, there are 3 versions with integrated rear light.
Rear light version MONO:
Recessed round LED taillight with 18mm diameter. Very discreet, yet extremely bright, of course with integrated brake light. With ABE.
Taillight version SHORTY:
Recessed 50mm wide and 8.5mm high SMD Technology based LED taillight / brake light, thus extremely bright. With ABE.
Taillight version STRING:
120mm wide, 10mm high LED taillight adapted to the frame radius, form-fitted into the rear frame. Of course also with integrated brake light. With ABE.
If you drive an overhead exhaust system (eg original Scrambler, or accessories such as Unit Garage, etc.), we also have a suitable exhaust holder in the program. (see accessory article in this description)
The rear frame is made of steel. The round tube is bent from one piece and welded in a welding jig, with the lasered and edged retaining plates.
Housings are made for the tail lights, which are recessed into the frame loop and also TIG welded. After grinding these welds, the frame gets a tough black satin powder coat finish.
The lower plates are made of 2mm thick aluminum sheets, then the brackets for the electronic components are riveted on and the threaded rivets for the turn signal holders are inserted. These are also powder coated in the same black as the frame.
As accessories, we recommend you to order for easier assembly still turn signals and taillight plugs. In addition, the colored license plate screws still make very good. You can find them under the accessories in this description.
The entire kit is both with central and lateral license plate holder legal, street legal and does not need to be registered at the TÜV.
You are interested in how such a RBH frame is made by hand? Then watch the video!
Indicator Brackets KRT
CB12213 / 0
€19.99*

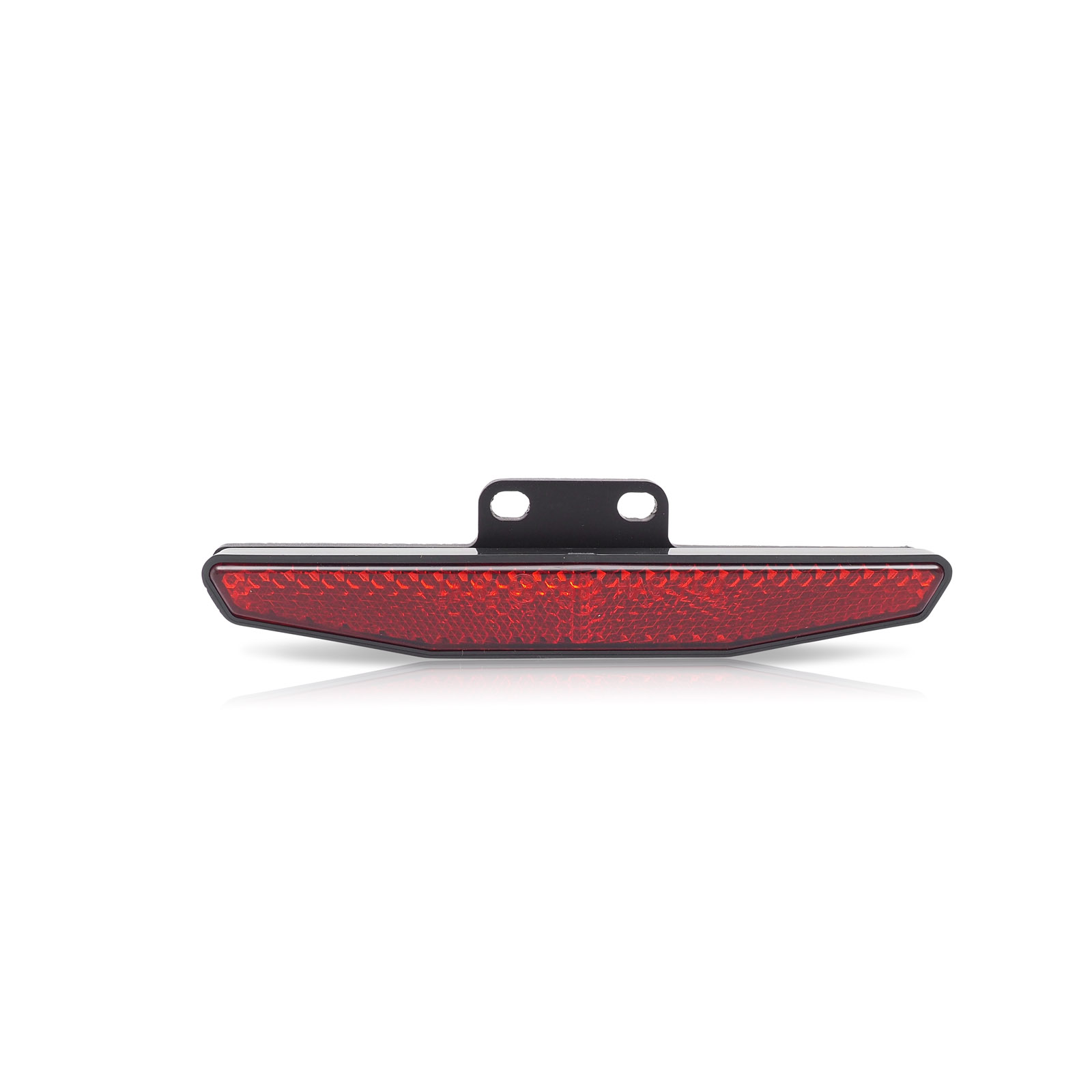

Reflector + holder suitable for all KRT license plate holders and rears.
This reflector can be mounted directly on all license plate holders from KRT Frameworks with the supplied holder and mounting hardware.
