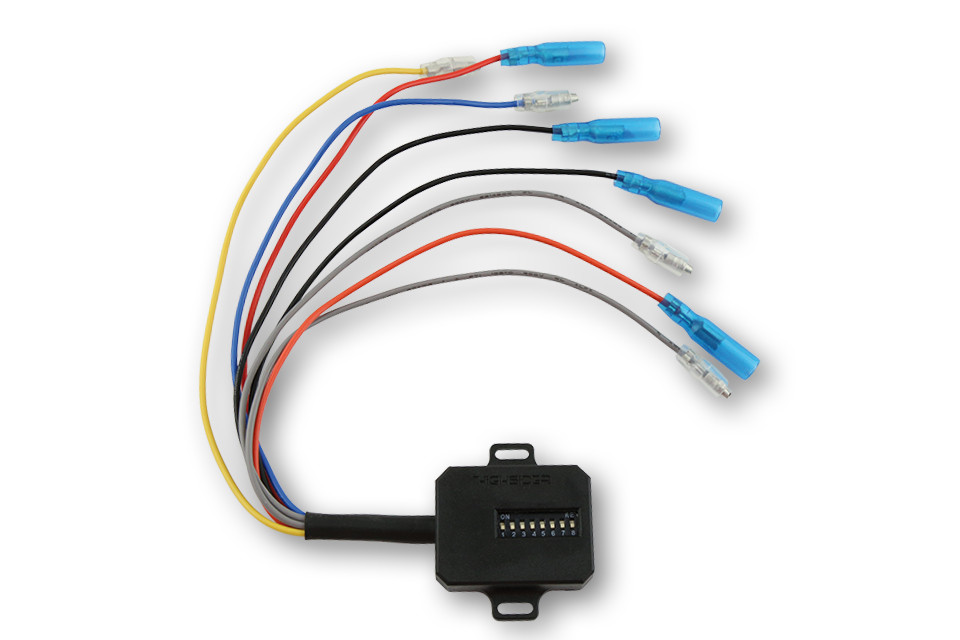

CAN-BUS universal Resistor
| Product number: | CB11666 |
| item number: | 207-033 |
The CAN-BUS universal resistor can be set to several different ohm numbers (see list below).
Who does not know the problem that the flashing frequency does not fit anymore when converting to LED flashers? The problem hasn't become any easier with the new CAN-BUS systems in most motorcycles. On the one hand we have the problem of the wrong flashing frequency, on the other hand error messages are displayed in the speedometer via the CAN-BUS system, if for example a flasher or the rear light is defective. Such an error is also often displayed incorrectly if new indicators or another rear light are installed. And to solve this problem, there is now the universal resistor, which comes with a detailed manual describing how to calculate the suitable resistor and how to adjust it in the resistor (just watch the video in this description).
The following resistance values can be set:
150 Ohm / 170 Ohm / 200 Ohm / 240 Ohm / 300 Ohm / 400 Ohm / 600 Ohm / 1200 Ohm
Dimensions:
Height = 11mm / Width = 31mm (without brackets) / Width = 46mm (with brackets) / Length = 40mm
Cable length = 200mm with pins
Connections:

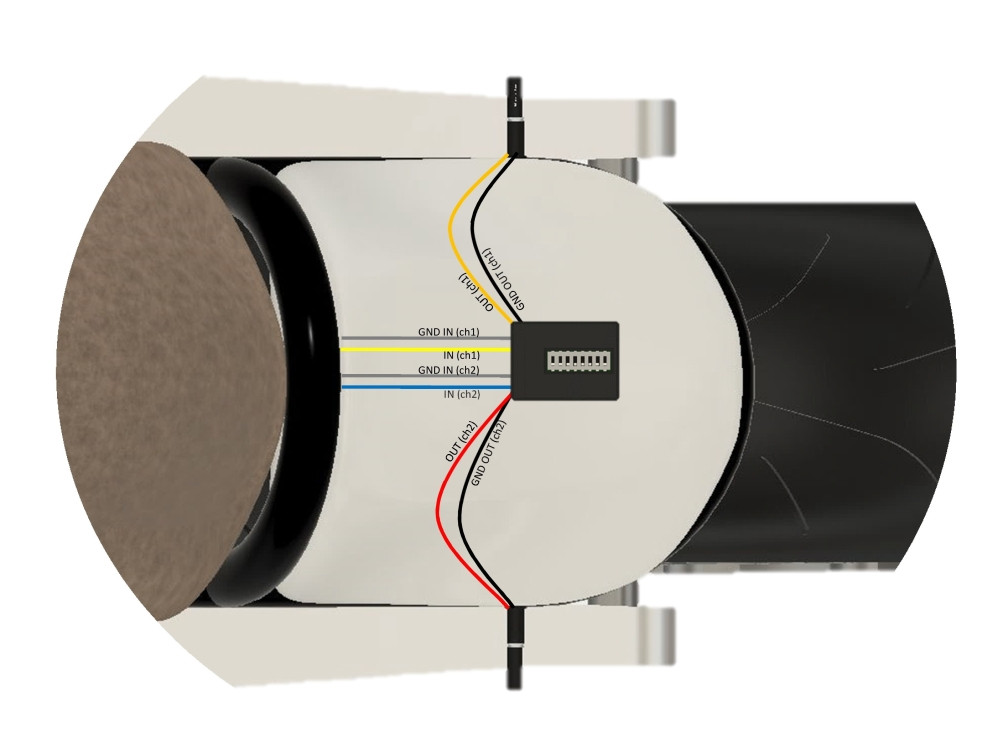

Yellow = Input channel 1 (+) / Orange = Output channel 1 (+) / Blue = Input channel 2 (+) / Red = Output channel 2 (+) / Grey = Input ground (-) / Black = Output ground (-)
| Models BMW R nineT: |
|
|---|---|
| Triumph LC models from 2016: |
|
| BMW R nineT |
R nineT /5 EU 4
R nineT Classic EU 3
R nineT Classic EU 4
R nineT Classic EU 5
R nineT Pure EU 4
R nineT Pure EU 5
R nineT Racer
R nineT Scrambler EU 4
R nineT Scrambler EU 5
R nineT Urban GS EU 4
R nineT Urban GS EU 5
|
|---|---|
| BMW R12 |
R12 Crusiser
R12 nineT
|
| Triumph 400er |
Scrambler 400 X
Speed 400
|
| Triumph LC ab 2016 |
Bobber 16" / Bobber Black EU 4
Bobber 16" / Bobber Black EU 5
Bobber 19"
Bonneville T100 EU 4
Bonneville T100 EU 5
Bonneville T120 EU 4
Bonneville T120 EU 5
Scrambler 1200 XC / X EU 4
Scrambler 1200 XC / X EU 5
Scrambler 1200 XC / X EU 5+
Scrambler 1200 XE EU 4
Scrambler 1200 XE EU 5
Scrambler 1200 XE EU 5+
Speed Twin 1200 EU 4
Speed Twin 1200 EU 5
Speedmaster EU 4
Speedmaster EU 5
Street Cup
Street Scrambler / Scrambler 900 EU 4
Street Scrambler / Scrambler 900 EU 5 - Street Scrambler / Scrambler 900
Street Twin / Speed Twin 900 EU 4
Street Twin / Speed Twin 900 EU 5 - Street Twin / Speed Twin 900
Thruxton 1200
Thruxton 1200 R
Thruxton 1200 RS
|
