Motogadget M.View Bar Adapter Cap - BMW
€59.00*
Available, delivery time: 1-3 days
Zubehörartikel
€129.00*
€99.00*
€99.00*
€99.00*
€129.00*
€99.00*
€129.00*
€99.00*
| Product number: | CB11863 |
| item number: | 7001062 |
Product information "Motogadget M.View Bar Adapter Cap - BMW"

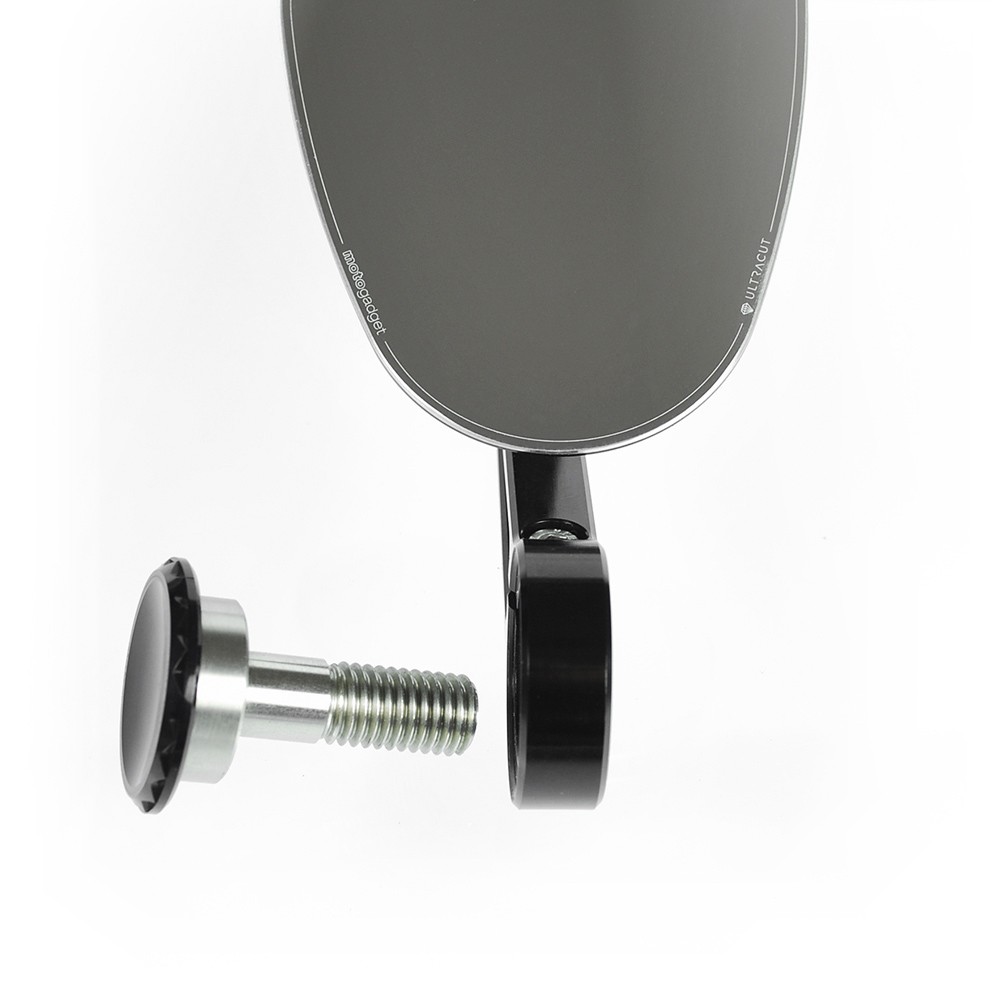

A pair of Motogadget handlebar extensions specially designed for all BMW R nine T models, which allow all Motogadget M.View handlebar end mirrors to be mounted on the handlebars without having to move the instruments further inwards. In addition, the adapters in combination with the Motogadget handlebar end mirrors offer a perfect handlebar end (see photos).

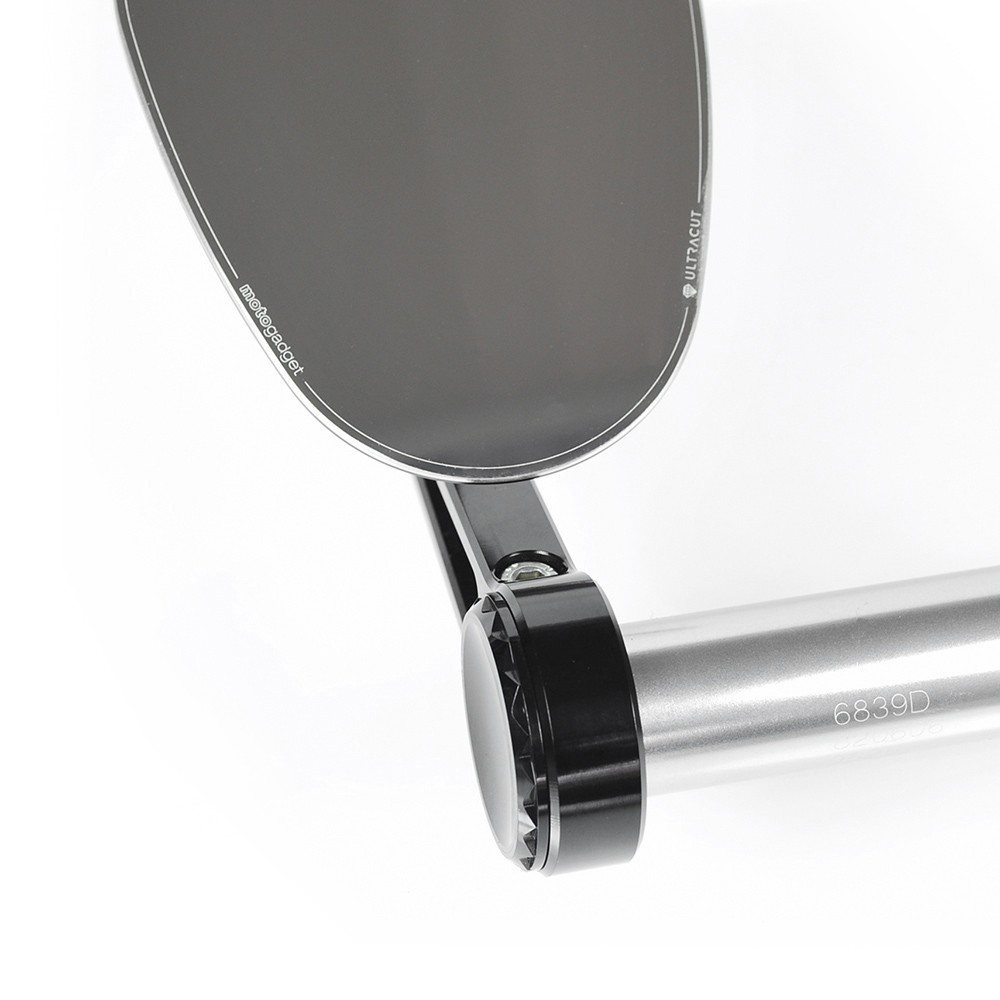

The adapter creates a clamping surface for the bar end mirror outside the steering tube. Suitable for all Motogadget bar end mirrors.
We also recommend the Motogadget handlebar grips, which have exactly the same outer dimensions as the mirrors and the adapters, then you have a completely clean line on the handlebar.
The special adapters, developed for the R nine T models, allows a very easy and very fast mounting on the original handlebars of the BMW. Simply remove the original bar end caps from the handlebar screws and screw the new Motogadget adapters into the original handlebar.
Fits all BMW handlebars with M12 thread
Total length: approx. 47 mm
width of the clamping surface for mirrors: 8 mm, fits all mo.view handlebar mirrors
diameter of the clamping surface: 1 inch, fits all mo.view handlebar mirrors
Weight (1 piece): approx. 50 g
The adapters are supplied as pairs.
| Models BMW R nineT: |
|
|---|
| BMW R nineT |
R nineT /5 EU 4
R nineT Classic EU 3
R nineT Classic EU 4
R nineT Classic EU 5
R nineT Pure EU 4
R nineT Pure EU 5
R nineT Racer
R nineT Scrambler EU 4
R nineT Scrambler EU 5
R nineT Urban GS EU 4
R nineT Urban GS EU 5
|
|---|---|
| BMW R12 |
R12 Crusiser
R12 nineT
|
