LSL Headlight Brackets adjustable

Product information "LSL Headlight Brackets adjustable "

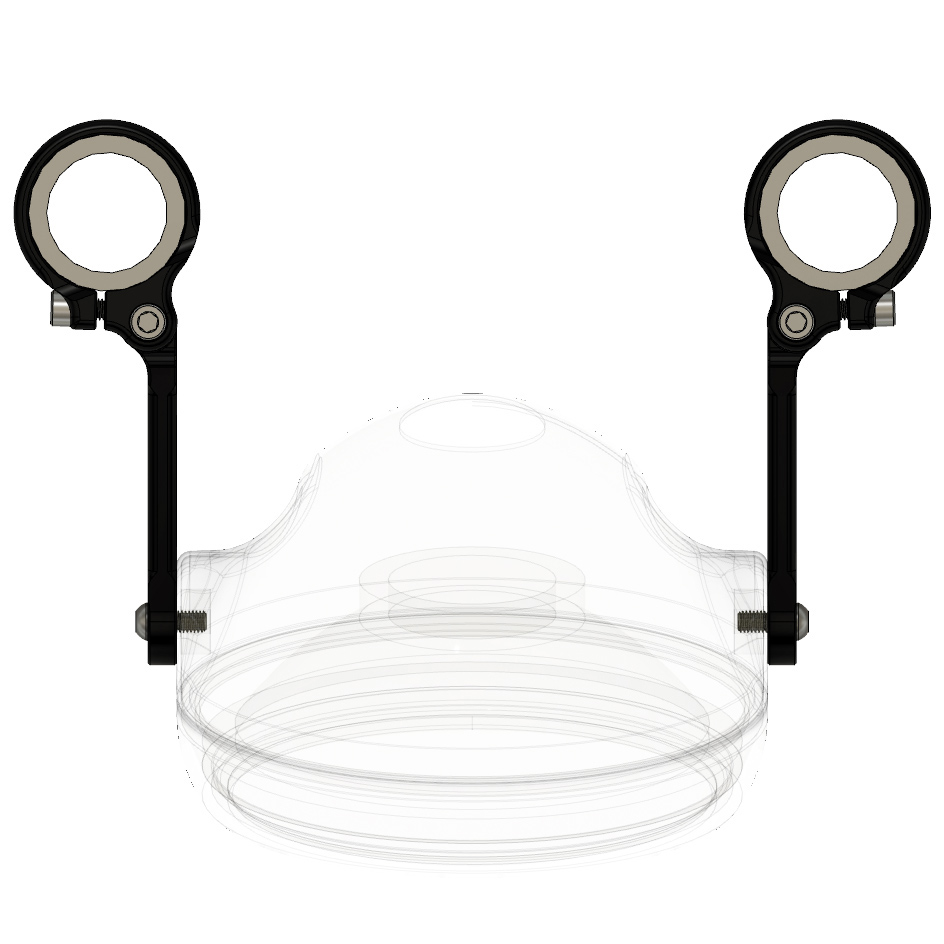

CNC machined, black anodized aluminum lamp holders from LSL.

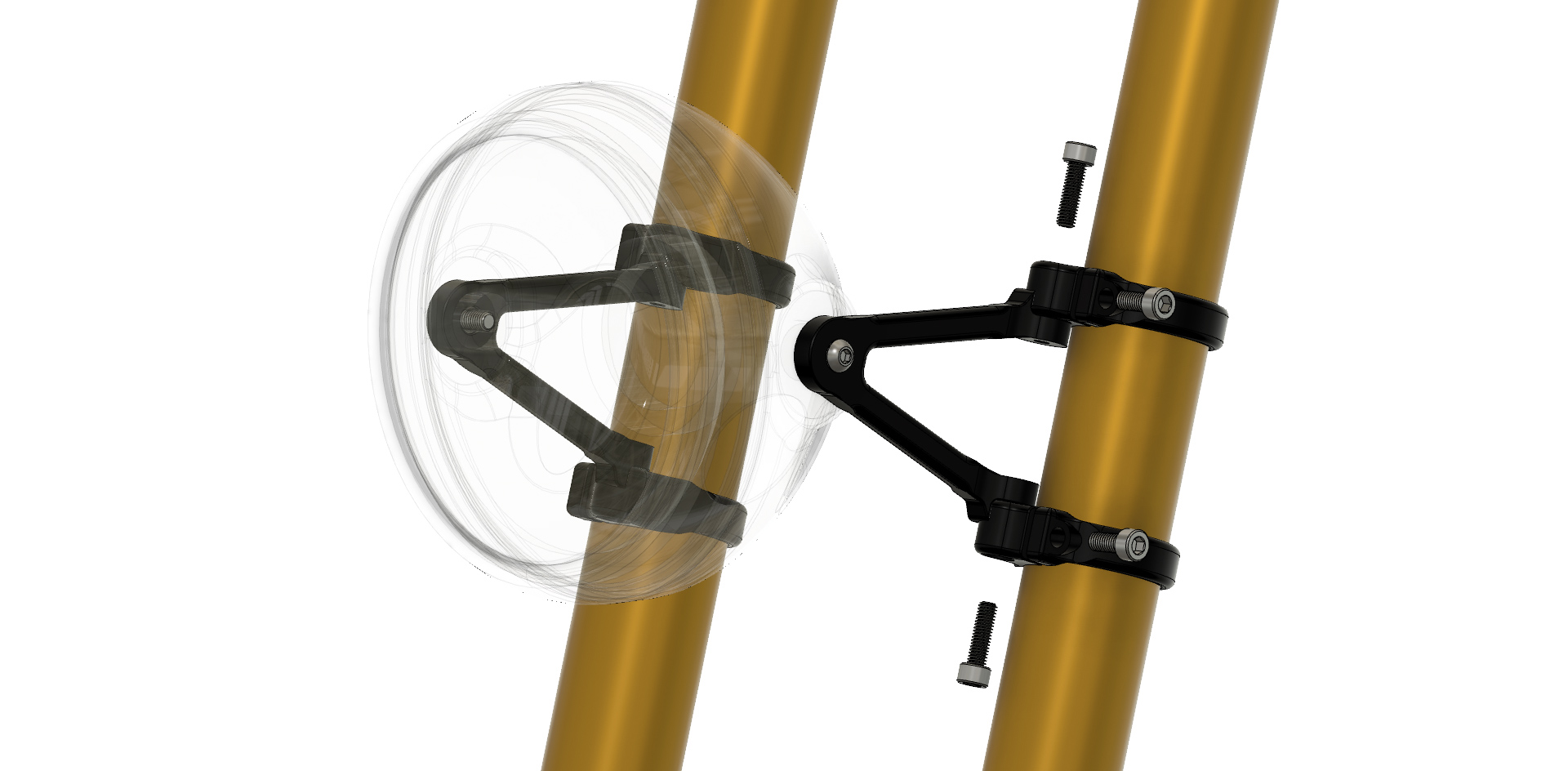

In these lamp holders, the screw connection of the mounting braces is arranged in a line to the fork legs. By rotating the lamp clamps, the holder can be adjusted so infinitely variable to the required width of the headlight. As with the well-known LSL lamp holders, the rotating version of the clamps are made of aluminum, black anodized and available in the diameters of the common motorcycle fork tubes.
Choose the variant that fits your vehicle.

There are the holders with in 3 different lengths (the strut) to get a perfect distance from the headlight to the motorcycle (please measure it on your motorcycle.

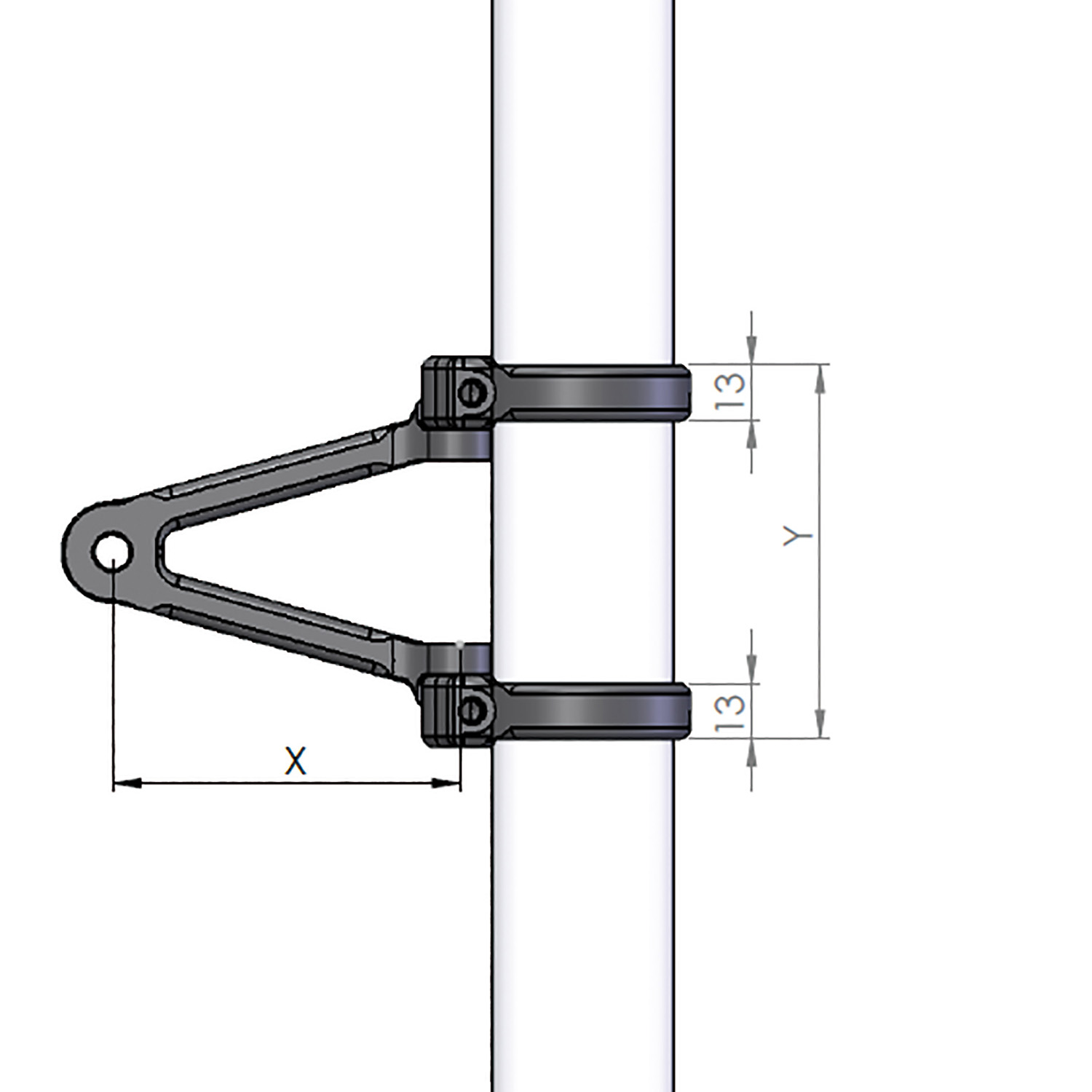

Below the pictures you can see a drawing that illustrates from where to where the different brackets have the specified dimension.
Long: 82mm
Short: 67mm
Extra short: 40mm

There are also holders for different fork diameters (please measure on your bike).

The holders have a nicely integrated 8mm turn signal mount in the strut. A perfect position to mount a small turn signal, such as the Motogadget pin turn signal from our range.
If you don't want to mount a turn signal at this position, we recommend our turn signal plugs M8, with which you can easily close the hole (see accessories in this description).

The assembly instructions are available under the downloads in this description.

Models BMW R nineT:
  • R nineT /5 EU 4
  • R nineT Classic EU 4
  • R nineT Pure EU 4
  • R nineT Racer EU 4
  • R nineT Scrambler EU 4
  • R nineT Scrambler EU 4.
  • R nineT Urban GS EU 4
Models Triumph AC until 2015:
  • Bonneville SE Gussrad
  • Bonneville T100 EFI
  • Bonneville T100 Vergaser
  • Scrambler EFI
  • Scrambler Vergaser
  • Thruxton 900 EFI
  • Thruxton Vergaser
Triumph LC models from 2016:
  • Bobber
  • Bonneville T100
  • Bonneville T120
  • Speed Twin - 1200
  • Street Cup
  • Street Scrambler
  • Street Twin
  • Thruxton 1200
BMW R nineT
R nineT /5 EU 4
R nineT Classic EU 4
R nineT Classic EU 5
R nineT Pure EU 4
R nineT Pure EU 5
R nineT Racer
R nineT Scrambler EU 4
R nineT Scrambler EU 5
R nineT Urban GS EU 4
R nineT Urban GS EU 5
Triumph AC bis 2015
Bonneville SE Gussrad
Bonneville T100 EFI
Bonneville T100 Vergaser
Scrambler EFI
Scrambler Vergaser
Thruxton 900 EFI
Thruxton Vergaser
Triumph LC ab 2016
Bobber 19"
Bonneville T100 EU 4
Bonneville T100 EU 5
Bonneville T120 EU 4
Bonneville T120 EU 5
Speed Twin 1200 EU 4
Speed Twin 1200 EU 5
Street Cup
Street Scrambler / Scrambler 900 EU 4
Street Scrambler / Scrambler 900 EU 5 - Street Scrambler / Scrambler 900
Street Twin / Speed Twin 900 EU 4
Street Twin / Speed Twin 900 EU 5 - Street Twin / Speed Twin 900
Thruxton 1200
600
600
600
600
