The Stripe LED headlight insert is a very attractive and simple insert that offers very good light output at a fair price!
The simple and clear design fits perfectly with our Modern Classic motorcycles. The clear glass gives your motorcycle a slightly modern touch without attracting negative attention with an overly restless design.
The light is a quantum leap compared to a conventional H4 halogen bulb! If you ride your motorcycle in the dark, you should invest some money in good lighting. On the one hand, you can see much better yourself because the road is properly illuminated, and on the other hand, you will also be seen better.
We supply the headlight in such a way that it can be installed plug & play in the original headlight of your Triumph. A glass base adapter is also required for the connection. This can be found under accessories in this description.
5 3/4" LED Bates Style Lamp Kit.Many conversions make it much nicer to install a nice small headlight, which is attached to the triple clamp. This eliminates the bulky side lamp holders.The Bates Style LED headlight is the perfect mix of classic shape, paired with a modern LED headlight insert. This is the perfect mixture for our Modern Classic bikes. Visually, such a clear LED insert really makes a difference (simply looks noble and high quality). On the one hand, the white LED light looks really noble, on the other hand, it turns night into day, which really makes a difference when driving in the dark. Everyone knows that the original H4 headlights are not the best.The all-metal headlamp has an outer diameter of 155mm and a depth of 110mm with E-number. We supply this headlight including stainless steel bracket for mounting on the lower triple clamp (where the regulator is actually located. The controller must be installed for this (see controller installation kit in the accessories of this description). In addition, the ignition switch must also be installed, as the ori lamp holders are omitted (see Ignition switch installation kit in the accessories of this description).The headlight can be perfectly combined with the Bates Style taillight, which is in the same handle (see accessories in this description).
To get an even cleaner front, you can optionally order the headlight sheet metal (see accessories in this description).
5 3/4" LED bump style lamp kit. Many conversions makes it much fancier to install a nice little headlight that mounts to the triple clamp. This eliminates the need for the clunky side lamp holders.The Bump style LED headlight is a small, classic headlight paired with a modern LED headlight insert. It's the perfect blend for our Modern Classic bikes. Visually, such a clear LED insert really makes a statement (just looks classy and high quality). However, the headlight radiates its full power only when it is on! On the one hand, the white LED light looks really classy, and on the other hand, it turns night into day, which really makes a difference when driving in the dark. Because everyone knows that the original H4 headlights are not exactly the best.
Made entirely of metal, this headlight has an outer diameter of 165 mm and a depth of 135 mm with E-number.
We deliver this headlight including stainless steel bracket to plug & play attachment to the lower triple clamp, where actually the regulator sits. The regulator must be relocated for this (see regulator relocation kit in the accessories of this description). In addition, the ignition lock must also be relocated, as the original lamp holders are omitted (see ignition lock relocation kit in the accessories of this description).
To get an even cleaner front, you can optionally order the headlight sheet metal (see accessory article in this description).
J.W LED headlight inserts with adaptive bend lighting for the original Thruxton & Bonneville headlight with 7" headlight. Can be exchanged Plug&Play against the original insert.These LED headlights provide extremely bright light. So you feel safe on the streets even in the dark. The original H4 headlights are simply not very bright (is just technology from yesterday).With this LED insert, even the night becomes day.The adaptive bend lighting ensures that the inside of a bend is illuminated in the dark. By integrated inclination sensors in the headlamp, the headlamp recognizes that the motorcycle goes into inclined position and automatically turns on the outer LED's on the headlamp, which then illuminates the curve perfectly.High beam: 1600 lm / low beam 1020 lm
Regardless of the safety aspect, such a bright LED light is also visually impressive! Who does not know it from the car? A car with xenon or LED light looks completely different than one with cheap H4 bulbs.The inserts are optionally available as adaptive version (with curve light), which again provides more safety at night. This is because here, the steering still uses external LEDs, which illuminate the bend better than the non-adaptive version.
Installation and connection is very simple: A plug&play cable to an H4 connection makes it easy to install the insert Plug&Play.In addition, an adapter ring is required for installation in the original headlamp (see accessories article in this description).
The Thunderbolt LED headlight is a very minimalist and flat headlight. With the headlight (in combination with a matching lamp holder), you can give your machine a really nice flat and close to the motorcycle front. Photos say more than words here.The light of this headlight is simply a poem. It looks on the one hand visually very nice (especially the central strip) and on the other hand it makes the night into day. The headlight is really nice and bright and ensures a safe ride even in the dark.
Model specific mounting instructions can be found below in this description.
The headlight has for mounting left & right each a M8 thread. On the back are also 6x M6 threads (two each at the top, middle and bottom).
Dimensions: Housing diameter: 170 mm / Depth: 84 mm / Distance mounting hole (center) to end of housing: approx. 48 mm.
Connectors:3-pin combo plug: yellow = low beam (+) / blue = high beam (+) / black = ground (-) Extra cable: white = position light (+) / black = ground (-)For connecting to a motorcycle that has a conventional glass base connection for the parking light, we offer a suitable adapter (see accessories article in this description)
These high-quality aluminum LED auxiliary headlights are the ideal addition to your Triumph Modern Classic or BMW R nineT / R12. They not only offer a visual upgrade, but also ensure greater safety when riding in the dark. Thanks to the integrated LED technology, you will be better seen at night and have significantly improved visibility.
E-approved LED fog lights for road use
The LED auxiliary lights have an E-number and are thus approved for road use. You can safely mount them on your motorcycle and benefit from their high luminosity without violating any applicable regulations.
Easy installation thanks to complete mounting kit
The mounting kit includes everything you need for installation. It is a perfect fit for Triumph Modern Classic and BMW R nineT / R12 motorcycles. Detailed instructions are also included so you can easily attach the fog lights.
Mounting recommendation: attachment to SW-Motech crash bars
For optimal mounting, we recommend attaching the additional lights to the SW-Motech crash bars that are specially designed for your motorcycle. You can find suitable crash bars among the accessories on this page.The auxiliary headlights can also be mounted on virtually any other accessory crash bar or in any other customized location.
Two mounting options:
With brackets: Use the matching brackets, which you can order from us as an accessory. This method is particularly easy and ensures a secure attachment.
Directly on the bars: Alternatively, you can drill a hole in the crash bars and attach the headlights directly to them. This method requires a little more effort, but it ensures a more elegant appearance, as the headlights protrude less.
Convenient operation via switch
A waterproof and illuminated switch is included, allowing you to conveniently turn the headlights on and off. The green illuminated switch is easy to mount on the handlebars and gives you maximum control while riding.
Optional accessories for your individual look
Accessories: mudguards
For an even more rugged look, you can also order protection for the LED lights. This not only enhances the visual effect, but also protects the headlights from damage. In addition, there is the option of ordering yellow foils for the headlight lenses. These give your motorcycle a classic look, but are not approved for road use in Germany.
Yellow headlight film for an individual look
The headlights are supplied with clear glass as standard. If you want to give your motorcycle a special touch, you can order the yellow headlight film from our accessories shop. This film is easy to apply and provides a unique design. Alternatively, you can use our film service if you don't want to do the installation yourself.
Technical details of the LED fog lights
Diameter: 7.1 cm – compact size for unobtrusive integration
Power: 12 W per light, luminous flux: 1,050 lumens
Power supply: 12 V, including wiring harness for easy connection to the motorcycle battery
Protection class: IP69 – water and dust resistant for maximum durability
ECE approval mark: ECE R19 F3, approved for road use
Maintenance-free: Virtually wear-free LED technology for trouble-free operation and reduced power consumption
Water-resistant handlebar switch: Illuminated, green switch for easy operation
Evo fog lights
Upgrade to LED with road approval for excellent visibility.
This LED conversion kit from Phllips, turns your simple H4 headlight into a bright LED headlight with elegant white light. Of course, you can't expect the same effect from this as from a complete LED headlight insert. But you can convert your H4 headlamp to a much brighter LED headlamp for a mere penny and still keep the classic look (complete LED inserts are not for everyone).The LED bulb has an integrated resistor, which ensures that no error is displayed in the on-board computer. In addition, the bulb has a small fan on the back, which ensures that the bulb does not get too hot.
With up to 230% brighter light than a conventional H4 bulb and a white beam similar to daylight, these LED bulbs illuminate everything clearly without dazzling oncoming drivers.
The bulb has already been tested on a number of motorbikes and is approved for them (see here for the list of tested motorbikes: click on Download Bike List below the description).The Phillips LED bulb can also be installed on all other Triumph models without any problems.
The customer must always download the approval via the QR code on the box and then carry it in or on the vehicle.
J.W LED headlight inserts for 5 3/4 inch headlights.These LED headlights provide extremely bright light. This makes you feel safe on the road even in the dark. The original H4 headlights are simply not very bright (is just technology from yesterday).With this LED insert, even the night becomes day.high beam: 1600 lm / low beam 1020 lmRegardless of the safety aspect, such a bright LED light is also visually impressive! Who does not know it from the car? A car with xenon or LED light has a completely different effect than one with cheap H4 bulbs.The J.W. Speaker LED inserts have an adaptive cornering light, which provides even more safety at night.Cornering light means that when you steer, additional, external LEDs come on to better illuminate the bend, just like you know it from modern cars.The insert is available in black & chrome (see photos)The installation and connection is very easy, by a plug&play cable to a H4 connector.The headlight fits into our accessories 5 ¾ inch headlight (see accessories).
Mounting Triumph Bobber: Fits directly into the original headlight of the bobber models without further adapters
Mounting Triumph Scrambler 1200: Fits directly Plug & Play without further adapter into the original headlight of the Scrambler models
Triumph AC Bikes: To get an even cleaner front, you can optionally order the headlight sheet metal (see accessories in this description).
Daytona Heritage lamp with Daytona speedo + necessary accessories: indicator lights, speedo holder in the lamp + external switch and sensor cable.
The lamp has a nice elongated shape which gives the bike a real old school look.
To mount the long headlight you need a longer lamp holder (see accessories in this description).
The speedometer can be connected to the carburetor models without any additional accessories. On the EFI injector models an additional module is needed to connect the speedometer (see accessories in this description).
This module is simply clamped between harness and headlight bulb. The assembly takes about 5 minutes.
The purpose of the module is that when the ignition is switched on, but the engine is not running yet, the headlight will be off to conserve the battery. Anyway, if you want to have the light on while the engine is not running, you just have to turn on the high beam switch and turn it off (that's exactly how you turn the light on when the engine is started). This module can be decisive whether the motorcycle starts again or not (especially with the EFI models, since they do not start anymore at a voltage drop of 0.1 Volt). And what could be worse than not coming home on a tour because of a low battery?
The light bulb is not affected.
Ein Hochwertiger Metall Scheinwerfer im Stil & Groesse des Scheinwerfer von Scrambler und Bonneville T140 & Spirit. Dient hier optimal als ersatz um den billig wirkenden originalen Plastischeinwerfer zu ersaetzen.
Oder bei anderen Motorraederern um einfach einen etwas kleinen Scheinwerfer zu verbauen.
Die Kabel muessen zum Teil unter den Tank verlegt werden.
7 "Lamp kit H4. Size as original. Completely made of metal with E-number. Lower mounting, this brings the headlight quite a bit closer to the vehicle. The difference is almost 50mm, which gives a completely different look. We deliver this headlight including stainless steel bracket for mounting on the lower triple clamp.
If you want to have the headlight a little more modern and better light, you can also order a J.W. Speaker LED headlight insert. These fit Pkug&Play in the housing (see accessory article in this description).
To be able to mount the headlight, the controller must be relocated on the motorcycle. You will find a suitable kit for this under the accessory articles in this description. The same applies to the ignition lock.
Info: On the pictures on the motorcycle was additionally attached a yellow film. This is NOT included in the delivery.
Bates Style 5 3/4 inch lamp kit with H4 headlight bulb.The kit gives the front of the machine a completely different style! The headlight is much smaller than the origjnale, moves closer to the bike and is mounted with a new bracket from below (at the fork bridge) and no longer on the side of the fork bars. The matching bracket and mounting material for mounting are included in the kit.Works with the original speedo as well as with all accessories speedometers from our program.The headlight has an outer diameter of 160 mm, has a metal housing and is with E-number.To mount the kit, the original regulator and the ignition lock must be relocated. For both we have installation kit in our program (both is done quite fast). You can find the kits under the accessories articles in this description.Built in is the H4 headlight insert (see pictures), if you want to have the LED insert like on the other pictures, you have to order the insert (see accessories in this description).Alternatively, the same kit is also available with an LED insert directly in the headlight (see similar articles). This one is a bit simpler than the one mentioned above in the accessories.
To get an even cleaner front, you can optionally order the headlight sheet metal (see accessories in this description).
H 4 Headlight insert clear with prism refractor. 7" suitable for BONNIE + THRUXTON original headlights. Nice optics and better visibility. E tested. Lens made of special plastic. Tolerates a rockfall better than the original glass.We also recommend to order the Nightbreaker bulb to have a brighter light (see accessories in this description).
4 inch - 131mm exterior headlight black. Completely made of metal with E-number. Lower attachment. We supply this headlamp including stainless steel bracket for mounting on the rectifier. Is sometimes a different look and makes the whole front visually very slim. The cables from the original lamp must be placed under the tank. The fat original speedometer no longer fits and would not fit to this lamp. Alternativeb offers the Tachos of Motogadget on our side.
7 inch metal headlight with H4 bulb.Glossy black coated headlight housing with chrome lamp ring for a little accent.Noble and very high quality finish.
With classic diffuser glass. But the original insert also fits in the headlight, who likes that better.
The headlight is also very suitable for integrating a small Motogadget in the headlight (hole must be drilled yourself). See photo.
Vintage lamp. 5 3/4 inch black with chrome ring. Comes with stand light bulb but without H4 bulb. The headlight has a cutout on the case for our DAYTONA VELONA tachos. If no tachometer is used, the supplied cap can be inserted into the hole.

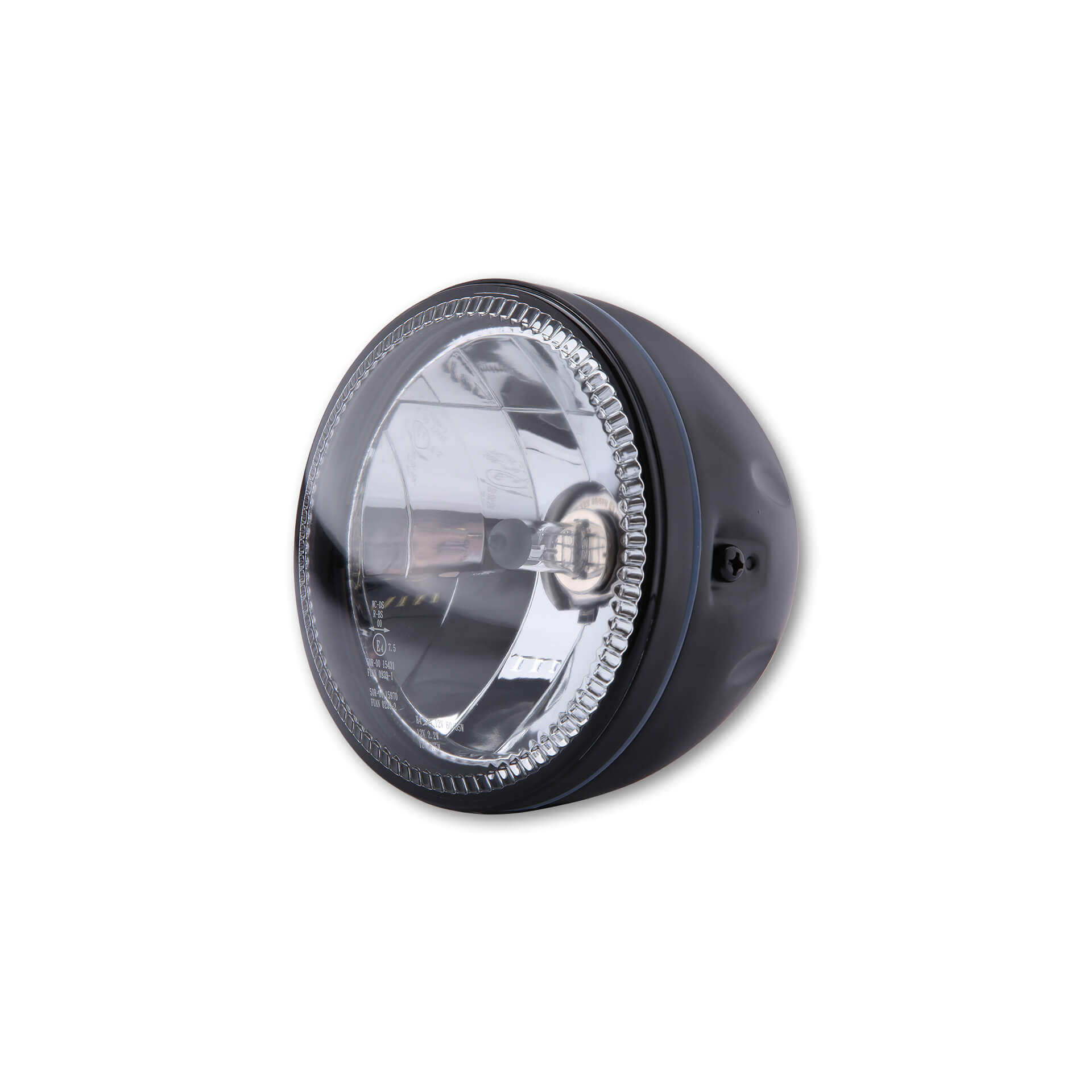

Headlight 5 3/4 with LED light ring, metal housing chromium-plated, H4, 12V 60/55 W, side mounting, E-tested. Lamp holder 143T024 is necessary. Ignition lock must be installed.
Styling lamp mask including headlight from JVB.
Absolutely new and distinctive look. Ready for painting.The mask changes the look of the machine considerably. Because of the no longer protruding headlight the bike looks more modern (pictures say more than words).
Not a Plag&Play solution. A little rebuilding is required. Horn and regulator have to be moved. Don't worry, this can be done without too much effort.
Beautiful, classic H4 6 1/2 inch headlight with clear glass reflector and small visor High quality metal housing and slightly smaller than the original 7" headlight.
The discreet shade makes the headlight a highlight.
In black with chrome ring on request.
dimensions:- Housing total diameter: approx. 190 mm- diameter headlight insert: 165 mm- depth incl. shade: 160 mm- Depth without screen (bottom): 150 mm- Depth to rear from mounting hole: 90 mm- Mounting hole: M8- Distance between the fixing holes: approx. 170 mm
