Product number:	CB12405
item number:	254-170

Product information "Frame tube LED 3-1 turn signal / taillight"

A pair of round 3-1 LED turn signal-tail light combinations that fits snugly into the rear frame tube of your Triumph.
3-1 turn signals integrate turn signal, tail light and brake light in one housing and the whole legal with E-number.

The turn signals / taillights can be inserted into the tubes and must then be glued with silicone. Cleaner and more inconspicuous you can not hide the turn signals in the rear area of the motorcycle.

Dimensions of the turn signals (see also picture)
A1: 13 mm
A2: 9 mm
D1: 22 mm
D2: 20 mm
Threaded bolt: M8, length: 12 mm

Product Information:

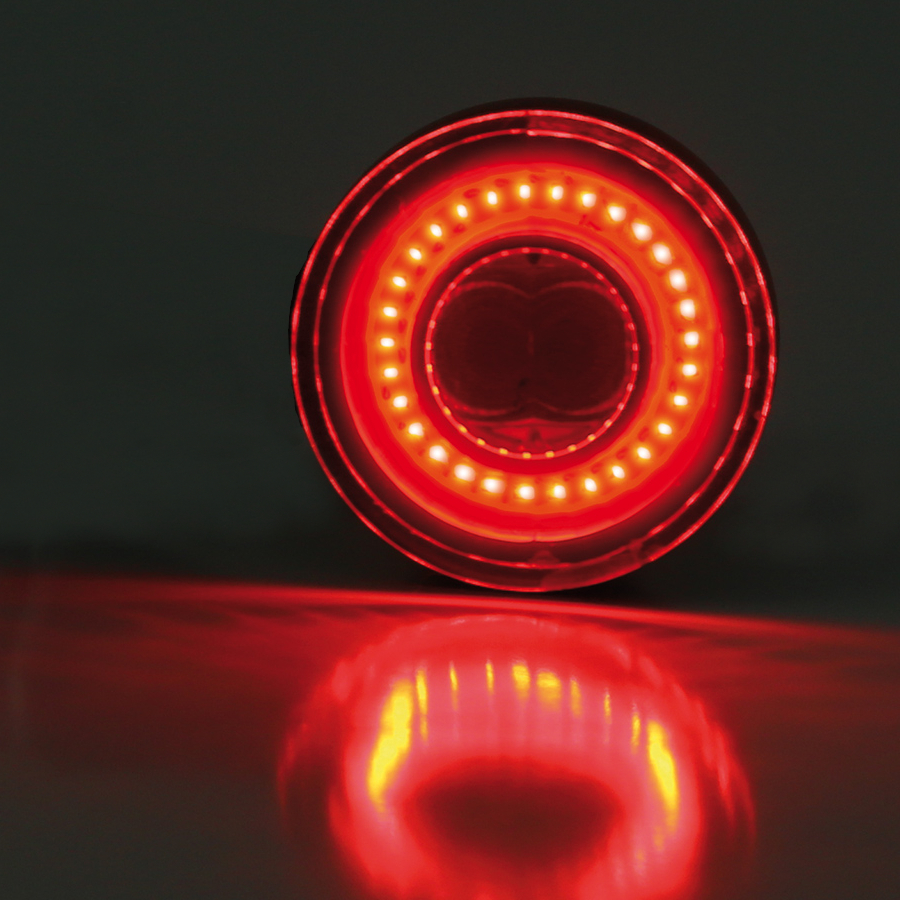

Made of a black aluminum ring with tinted glass. In this innovative lighting technology, 2 very bright SMD LEDs are installed in the center, allowing for an extremely small size. The outer ring, on the other hand, is made of the new COB technology (Chip On Board). Due to the new LED chip embedding for high-power LEDs, a very high luminance is achieved with currently the best possible efficiency and service life. In addition, higher light values can be achieved than with conventional LEDs. This module is supplied with a black anodized aluminum ring that fits over the base body.

Triumph 400er	Scrambler 400 X Speed 400
Triumph AC bis 2015	Bonneville SE Gussrad Bonneville T100 EFI Bonneville T100 Vergaser Scrambler EFI Scrambler Vergaser Speedmaster / America Thruxton 900 EFI Thruxton Vergaser
Triumph LC ab 2016	Bobber 16" / Bobber Black EU 4 Bobber 16" / Bobber Black EU 5 Bobber 19" Bonneville T100 EU 4 Bonneville T100 EU 5 Bonneville T120 EU 4 Bonneville T120 EU 5 Scrambler 1200 XC / X EU 4 Scrambler 1200 XC / X EU 5 Scrambler 1200 XE EU 4 Scrambler 1200 XE EU 5 Speed Twin 1200 EU 4 Speed Twin 1200 EU 5 Speedmaster EU 4 Speedmaster EU 5 Street Cup Street Scrambler / Scrambler 900 EU 4 Street Scrambler / Scrambler 900 EU 5 - Street Scrambler / Scrambler 900 Street Twin / Speed Twin 900 EU 4 Street Twin / Speed Twin 900 EU 5 - Street Twin / Speed Twin 900 Thruxton 1200 Thruxton 1200 R Thruxton 1200 RS

600

Please enter a valid email address.

Your question *

Please enter a valid question.

I agree that my data will be processed to answer the question. I have taken note of the Privacy Policy and agree to the information described therein.*

Fields marked with * are mandatory.

There aren't any asked questions yet.

Zubehörartikel

Blinker LC Indicator side CB11072 / -20

The matching flasher in the set (4 pieces for a pair of turn signals) in order not to cut the original wiring harness. These plugs are crimped onto the cables of the turn signals and can then be easily and quickly plugged on the cable harness side.

€8.90*

Indicator original Triumph connector CB10742 / -100

The matching flasher in the set (4 pieces for a pair of turn signals) in order not to cut the original wiring harness. These plugs are crimped onto the cables of the turn signals and can then be easily and quickly inserted on the cable harness side.

€9.95*

Indicator light for LED indicators CB10732 / 600

Is needed if you install LED turn signals and do not replace the flasher relay. One set is enough for a pair of turn signals. These resistors are the universal solution for virtually all vehicles and all LED turn signals, if there is a problem with the flashing frequency (even on models where you can set the frequency in the speedometer). It is also sufficient if you install a set of resistors (usually offers better for space reasons in the back), although you install 4 LED turn signals on the vehicle.

€14.95*
