Frame tube LED turn signal

Product information "Frame tube LED turn signal"

A pair of round LED turn signals that fits exactly in the rear frame tube of your Triumph.

The turn signals can be inserted into the tubes and then still need to be glued with silicone. Cleaner and more inconspicuous you can not hide the turn signals in the rear area of the motorcycle.

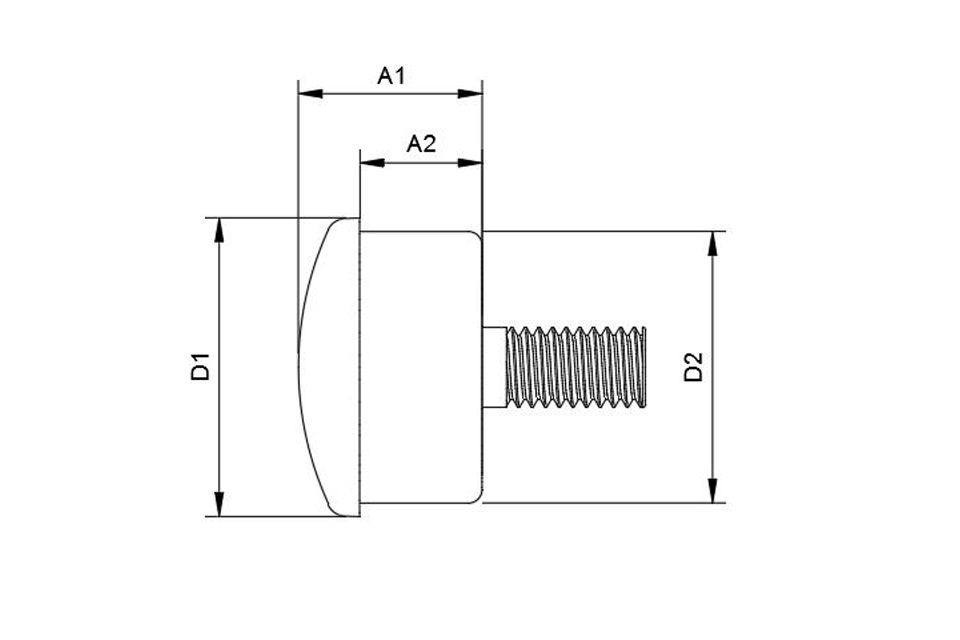

Dimensions of the turn signals (see also picture)
A1: 13 mm
A2: 9 mm
D1: 22 mm
D2: 20 mm
Threaded bolt: M8, length: 12 mm

Product Information:
Made of a black aluminum ring with tinted glass. In this innovative lighting technology, 2 very bright SMD LEDs are installed in the center, allowing for an extremely small size. The outer ring, on the other hand, is made of the new COB technology (Chip On Board). Due to the new LED chip embedding for high-power LEDs, a very high luminance is achieved with currently the best possible efficiency and service life. In addition, higher light values can be achieved than with conventional LEDs. This module is supplied with a black anodized aluminum ring that fits over the base body.

Triumph 400er
Scrambler 400 X
Speed 400
Triumph AC bis 2015
Bonneville SE Gussrad
Bonneville T100 EFI
Bonneville T100 Vergaser
Scrambler EFI
Scrambler Vergaser
Speedmaster / America
Thruxton 900 EFI
Thruxton Vergaser
Triumph LC ab 2016
Bonneville T100 EU 4
Bonneville T100 EU 5
Bonneville T120 EU 4
Bonneville T120 EU 5
Street Cup
Street Scrambler / Scrambler 900 EU 4
Street Scrambler / Scrambler 900 EU 5 - Street Scrambler / Scrambler 900
Street Twin / Speed Twin 900 EU 4
Street Twin / Speed Twin 900 EU 5 - Street Twin / Speed Twin 900
600
600
600
600

Please enter a valid email address.
Please enter a valid question.
Fields marked with * are mandatory.

There aren't any asked questions yet.

Zubehörartikel

Indicator light for LED indicators CB10732 / RS600
Is needed if you install LED turn signals and do not replace the flasher relay. One set is enough for a pair of turn signals. These resistors are the universal solution for virtually all vehicles and all LED turn signals, if there is a problem with the flashing frequency (even on models where you can set the frequency in the speedometer). It is also sufficient if you install a set of resistors (usually offers better for space reasons in the back), although you install 4 LED turn signals on the vehicle.

€14.95*
Blinker LC Indicator side CB11072 / RS-20
The matching flasher in the set (4 pieces for a pair of turn signals) in order not to cut the original wiring harness. These plugs are crimped onto the cables of the turn signals and can then be easily and quickly plugged on the cable harness side.

€8.90*
Indicator original Triumph connector CB10742 / RS-100
The matching flasher in the set (4 pieces for a pair of turn signals) in order not to cut the original wiring harness. These plugs are crimped onto the cables of the turn signals and can then be easily and quickly inserted on the cable harness side.

€9.95*
