Motogadget ChronoClassic
€479.00*
Available, delivery time: 1-3 days
Zubehörartikel
€216.00*
Zubehörartikel
from €495.00*
from €39.95*
from €59.00*
from €18.05*
€24.00*
€175.00*
from €24.95*
€23.00*
| Product number: | CB00209.7 |
| item number: | 20040-50.-60 |
Product information "Motogadget ChronoClassic"

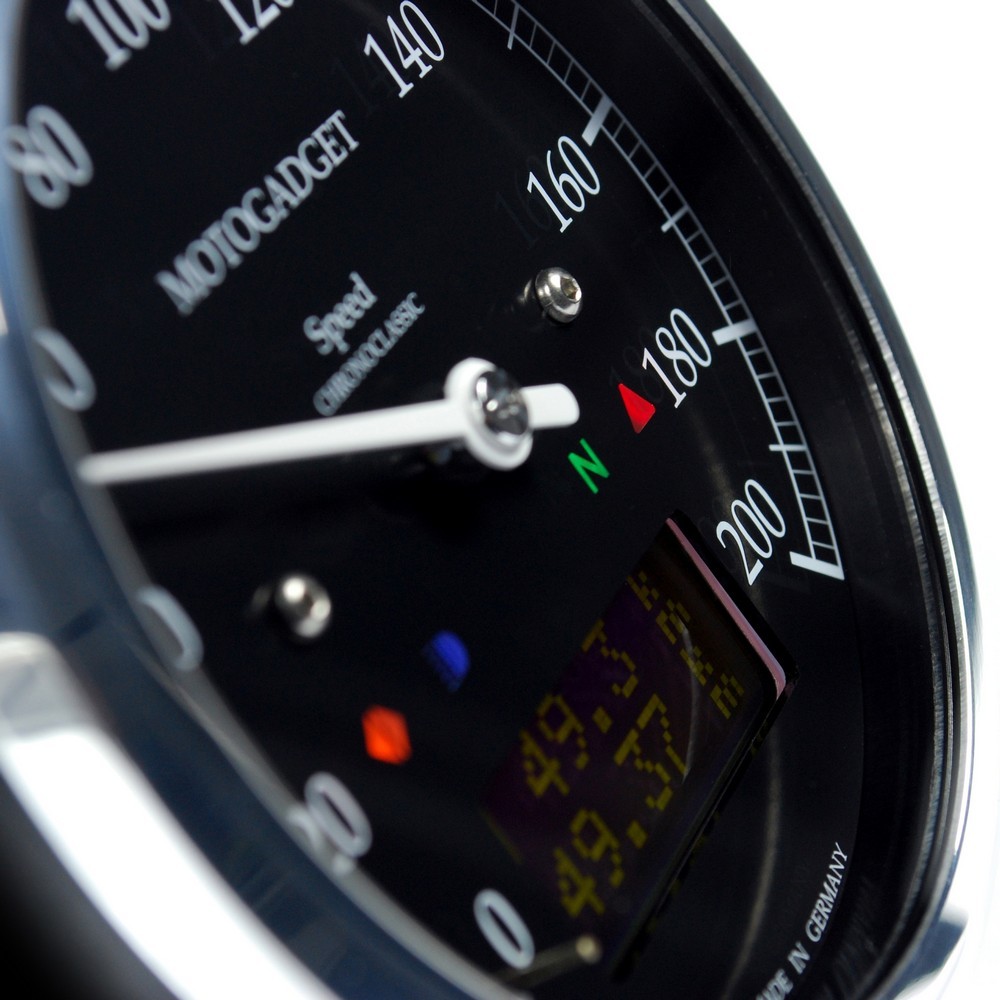

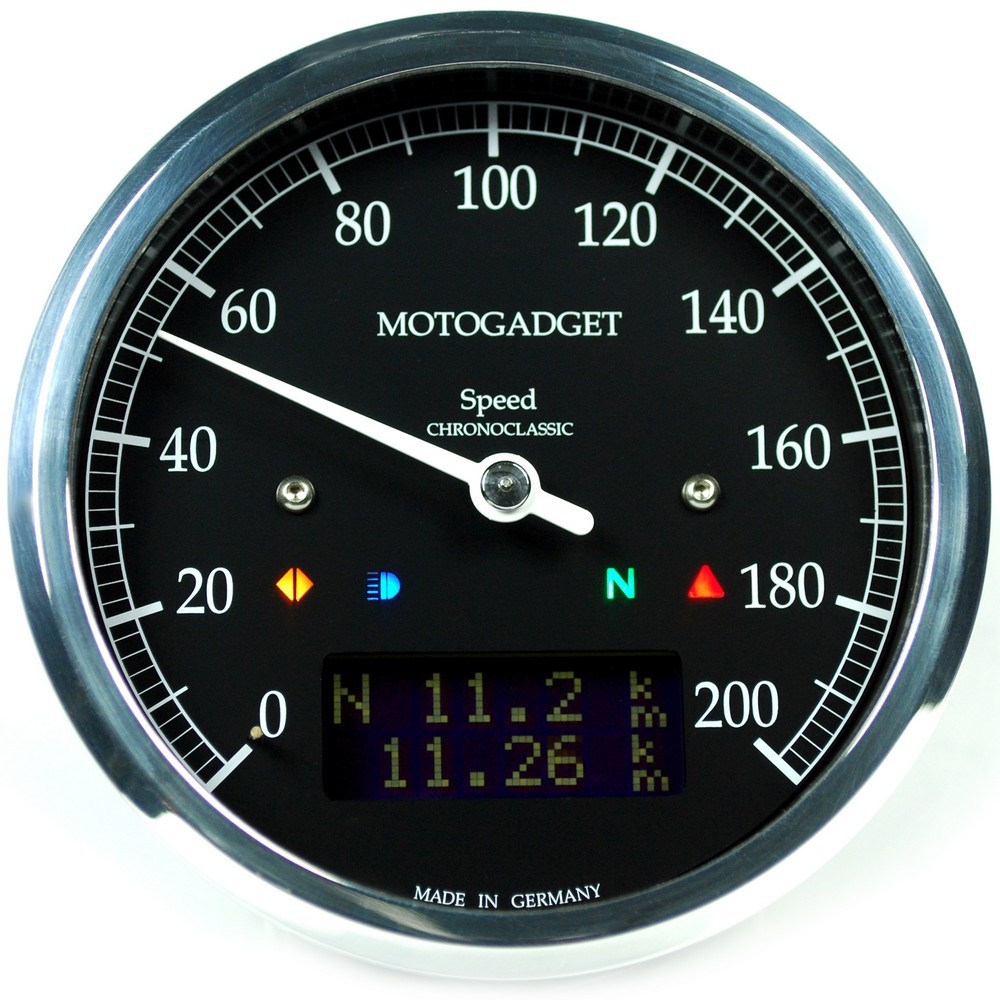

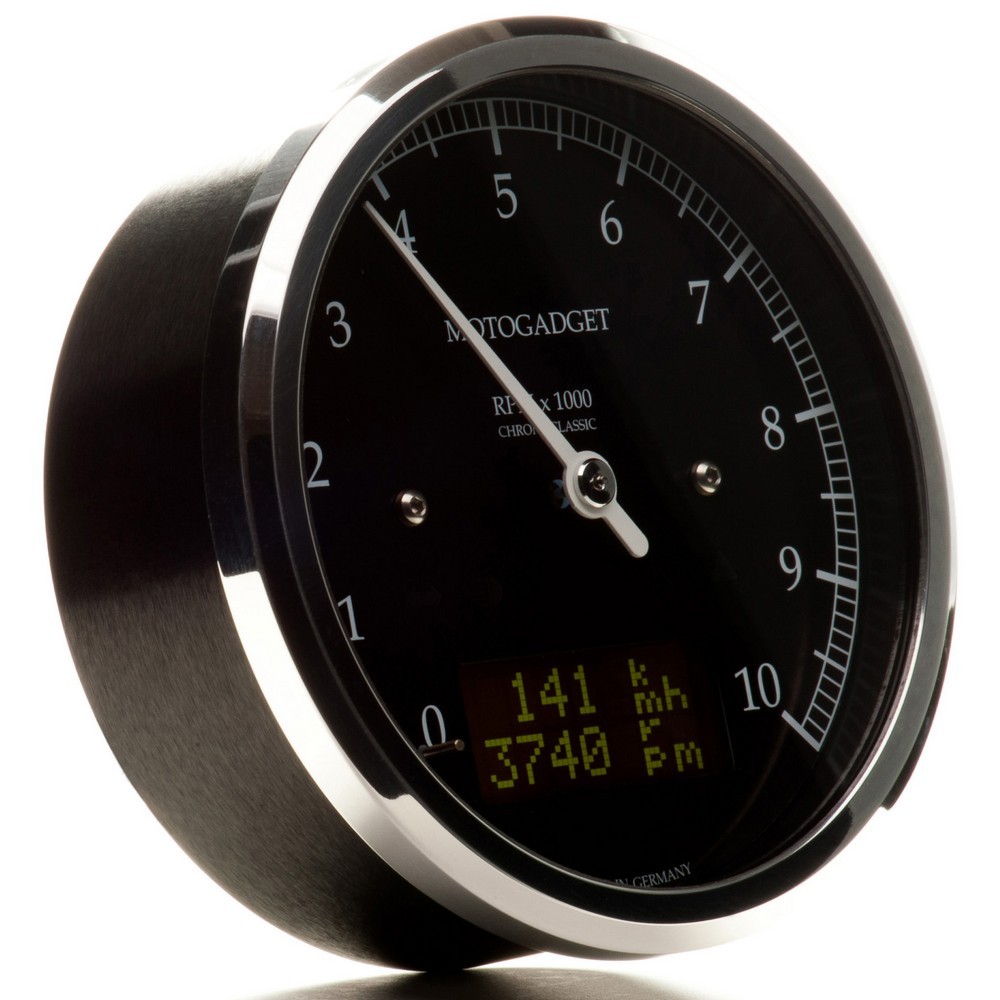

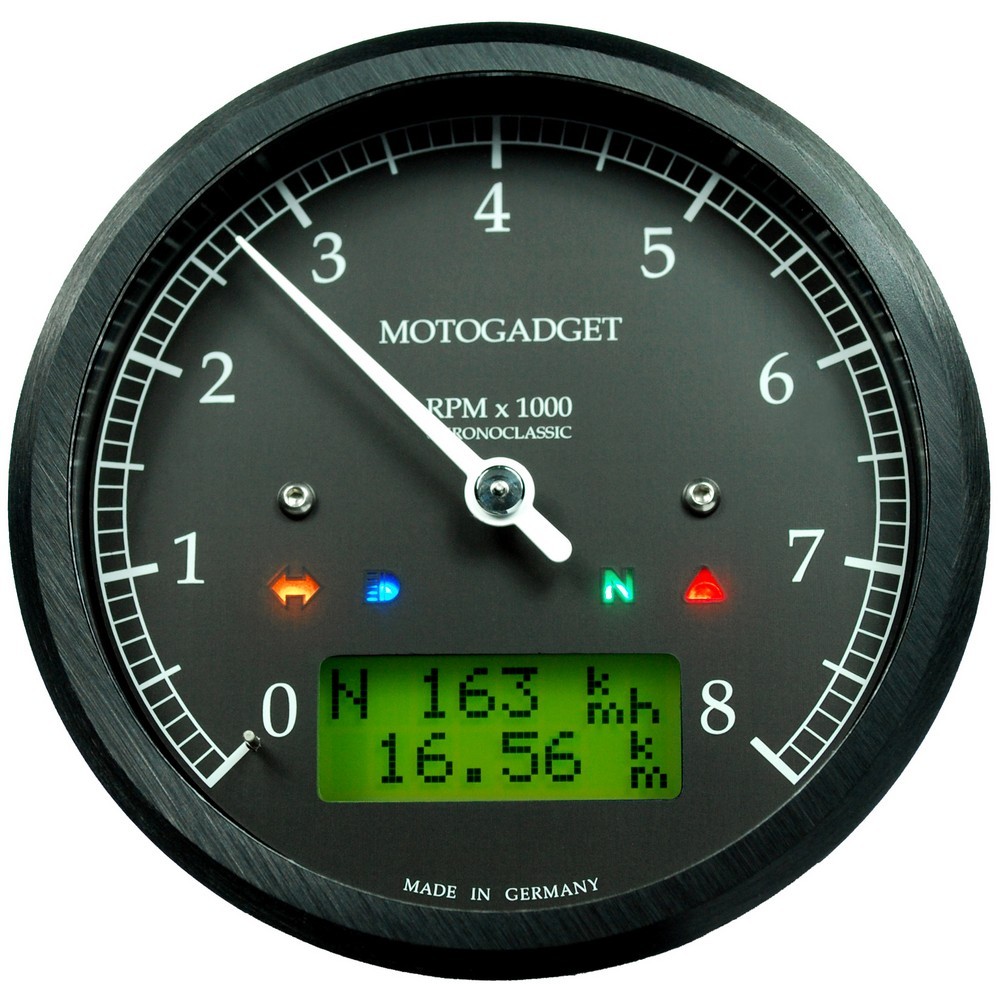

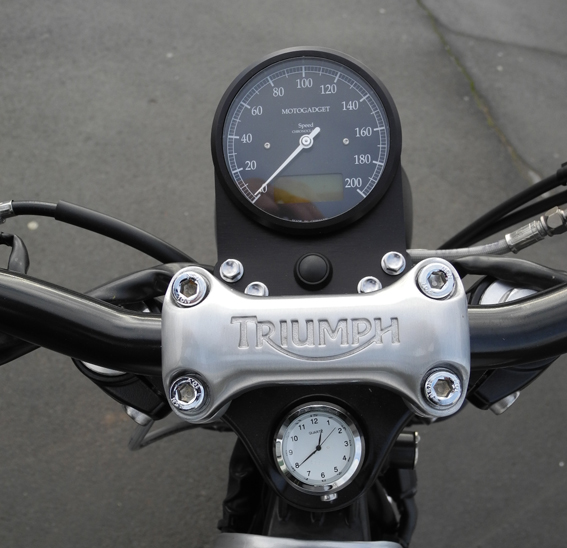

The Chronoclassic speedo from motogadget is an analog speedometer with many digital additional functions in a classic round case.

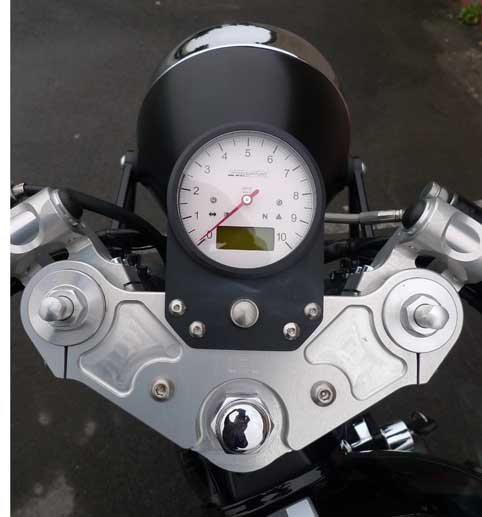

Classicbike-Raisch offers some special mounting plates and materials for motogadget instruments (you can find them all under the accessories in this description).
Also, an additional box is needed to connect the tachometers on many motorcycles (also found under the accessories).
Model specific descriptions can be found below the general description.

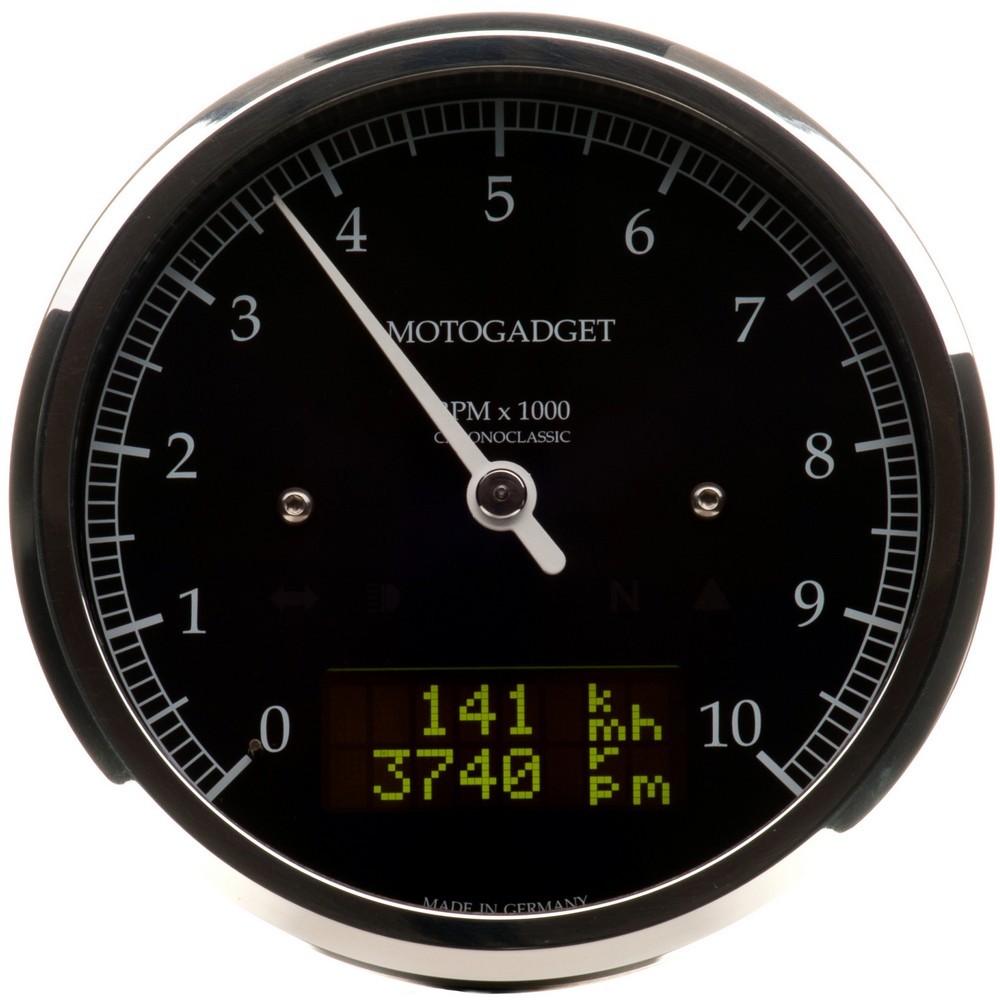

Another special feature is the dark LC display on the DarkEdition. It gives the instrument an even more harmonious appearance.
However, we expressly point out that the readability is reduced in direct sunlight. If you value the best possible readability, please go for the green standard display.

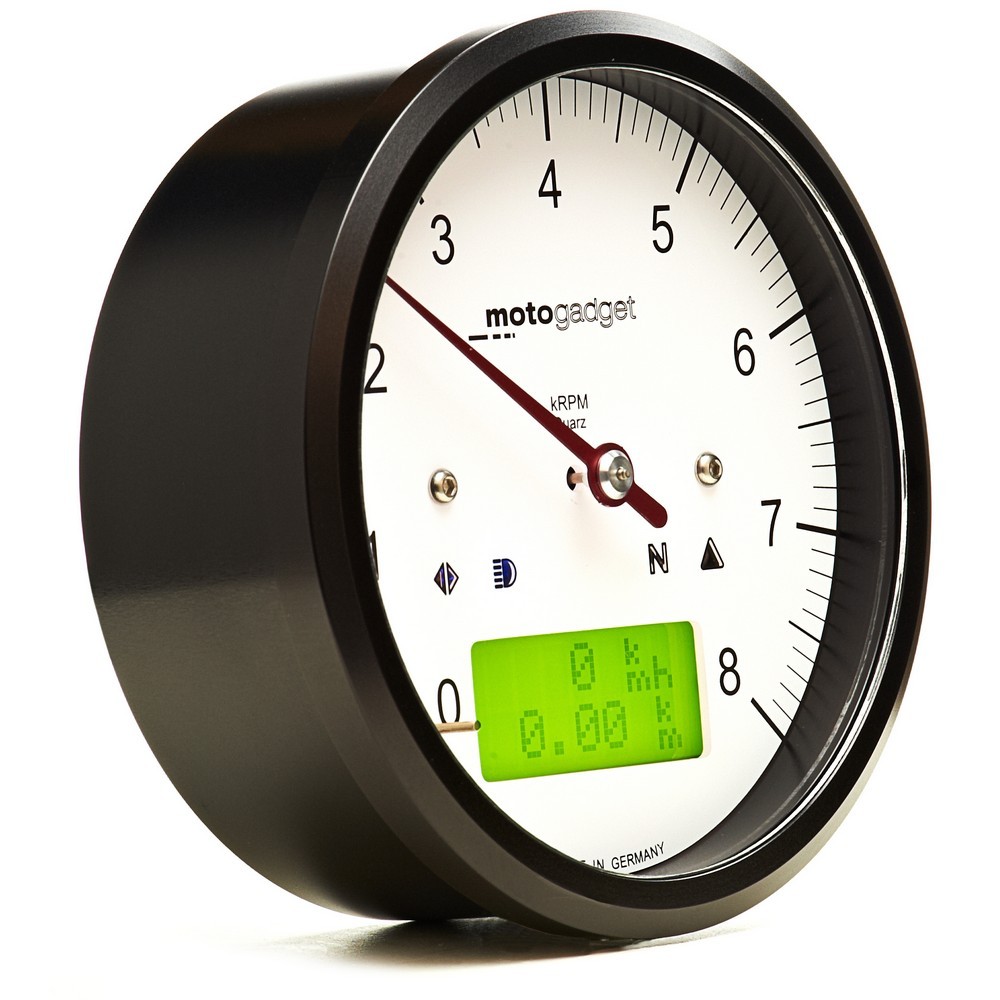

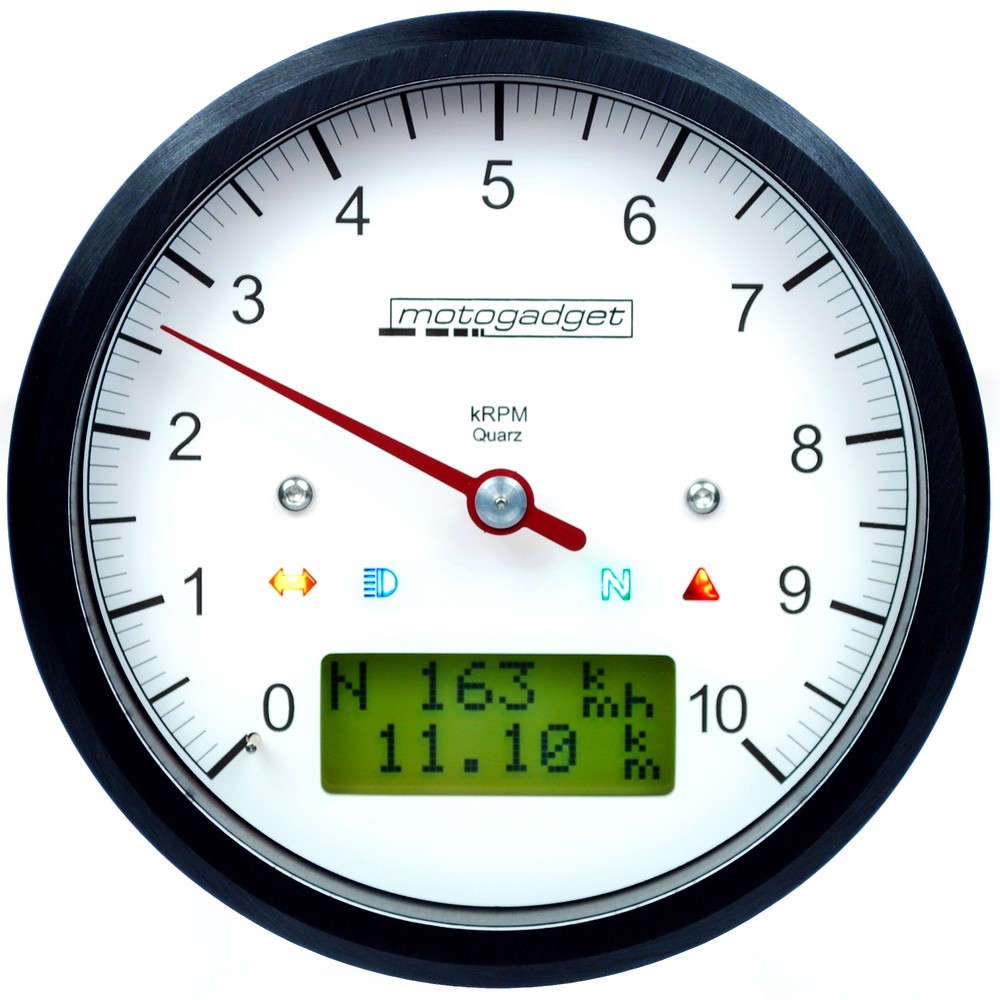

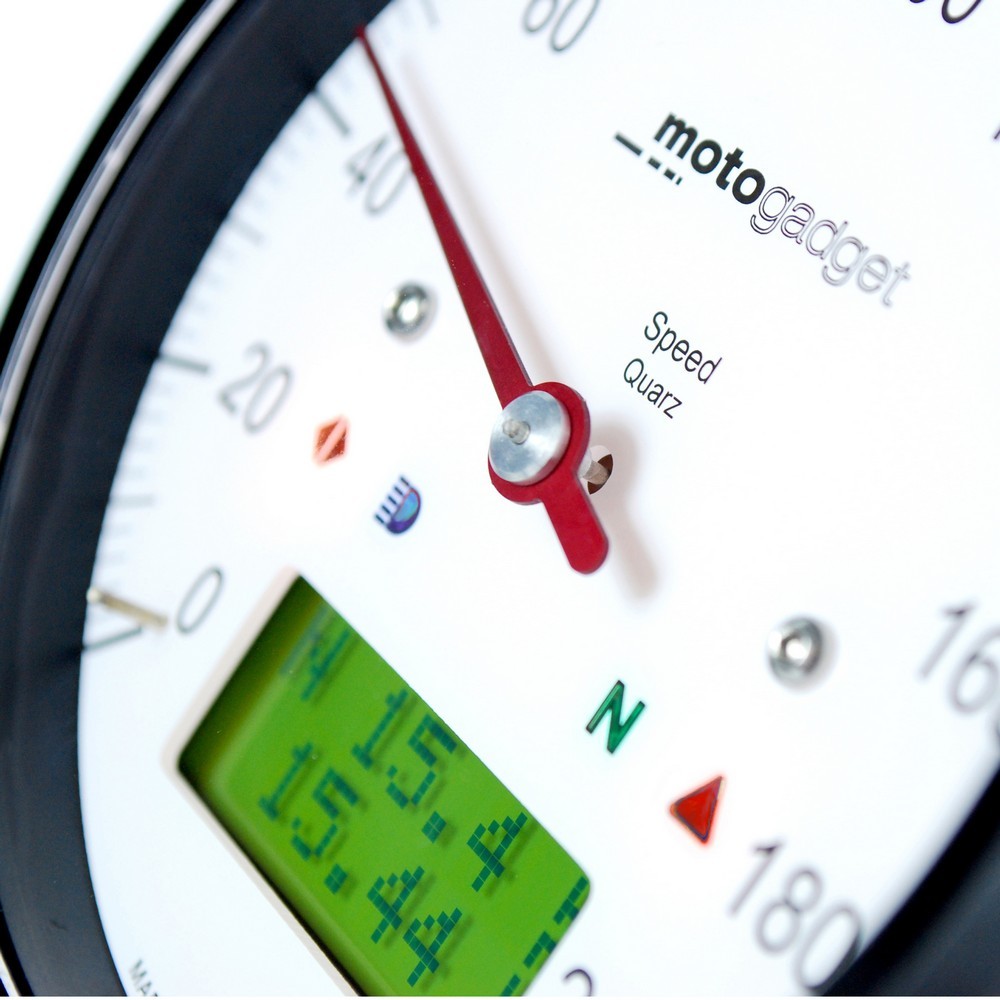

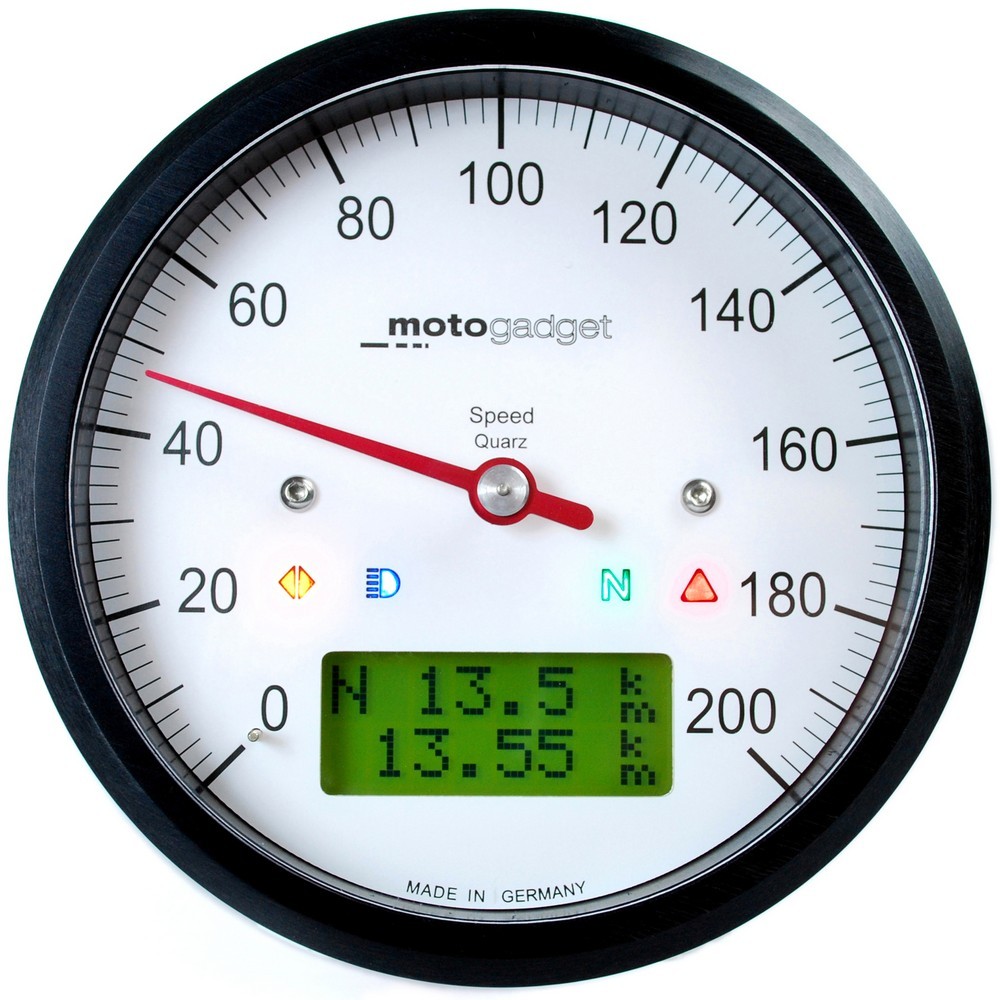

The technically identical instrument is also available with a white dial (see motoscope classic speedo) or as an analog tachometer (see analog DZM series CLASSIC).
| Models BMW R nineT: |
|
|---|---|
| Models Triumph AC until 2015: |
|
| Triumph LC models from 2016: |
|
| BMW R nineT |
R nineT /5 EU 4
R nineT Classic EU 4
R nineT Pure EU 4
R nineT Racer
R nineT Scrambler EU 4
R nineT Urban GS EU 4
|
|---|---|
| Triumph AC bis 2015 |
Bonneville SE Gussrad
Bonneville T100 EFI
Bonneville T100 Vergaser
Scrambler EFI
Scrambler Vergaser
Speedmaster / America
Thruxton 900 EFI
Thruxton Vergaser
|
| Triumph LC ab 2016 |
Bobber 16" / Bobber Black EU 4
Bobber 16" / Bobber Black EU 5
Bobber 19"
Bonneville T100 EU 4
Bonneville T100 EU 5
Bonneville T120 EU 4
Bonneville T120 EU 5
Speed Twin 1200 EU 4
Speed Twin 1200 EU 5
Speedmaster EU 4
Speedmaster EU 5
Street Cup
Street Scrambler / Scrambler 900 EU 4
Street Scrambler / Scrambler 900 EU 5 - Street Scrambler / Scrambler 900
Street Twin / Speed Twin 900 EU 4
Street Twin / Speed Twin 900 EU 5 - Street Twin / Speed Twin 900
Thruxton 1200
Thruxton 1200 R
|
4
4
4
4
There aren't any asked questions yet.
Zubehörartikel
Motogadget Mo.Hub Kit BMW R9T / Classic
CB12043
/ RS-1
€216.00*
Motogadget Mo.Hub KIT for BMW RnineT Euro4 models. Includes milled bracket for the Motogadget Classic & Chrono Classic speedometers, specifically for the BMW R9T.The Mo. Hub allows to connect the Motogadget speedometers: Mini, Chrono Classic & TIny (see accessory articles in this description) almost plug & play (a smartphone with the Motogadget Mo. Ride app is mandatory).
In addition, the Mo.Hub makes it possible to use the Motogadget app Mo.Ride.
Functions Mo.Hub:
The mo.hub receives data like speed, RPM and indicator lights from the digital vehicle bus (LIN bus) and converts them into usable signals for the motoscope tiny or mst speedster. The control lights of the instrument partly represent several functions (by continuous light or flashing). According to the clear assignment table, the vehicle plug and the instrument are connected to the contact strips of the mo.hub. Then only the vehicle plug has to be plugged into the counterpart of the BMW. The connection is ready. This is almost plug & play. Then the smartphone and the mo.ride app are paired with the mo.hub via Bluetooth. This automatically applies all the necessary settings correctly and it can be started immediately.Encrypted connection via Bluetooth® LE (Low Energy), therefore tamper-proofextremely low power consumption of smartphone and mo.hubthe highly sensitive accelerometer allows to display your driving activity in mo.ride by an activity factor, number of turns, top speed and other statisticsmonitoring of the current battery voltage in the appFirmware updates possible without removal at any place via smartphone and appConfiguration possible without removal at any location via smartphone and appVehicle management in the appMaintenance management through automatically updated mileage with notes on maintenance tasks, service tasks, condition of tires, brake pads, oils, operating fluids, spark plugs, etc.Tour tracking records all journeysLogbook stores all generated vehicle messages and maintenance tasksdisplay of parking position and Ping! to help with vehicle searchsoon 'ride mode' will be integrated into the app. There you can compose your own dashboard from different measurements and displays. E.g. timing 0-100 km/h, temperatures, altitude meters, curve counter, tilt angle, compass, fun factor, weather data and much more.
Technical requirements:
The mo.hub is compatible with all models of the RnineT series with Euro 4 (from model year 2017). Also Urban G/S, Pure, Racer and Scrambler. It currently supports the instrument series mini with combi frame, tiny and classic. To install the mo.hub kit, you need our app mo.ride in any case. Without smartphone and app, the mo.hub can not be put into operation! The app works with smartphones that use the Android 8.0 operating system and iOS 12.4 or higher. In rare cases, compatibility may be limited due to the device. More info about the app also at mo.ride.de or in Google Play and iTunes.
Scope of delivery:
mo.hub single BMW R9T LIN -mo.hub with cover and mounting possibility the vehicle connector to the BMW RnineT Euro 4the milled and black anodized bracket for the motoscope classic or Chronoclassic especially for BMW R9T Euro 4the detailed installation and operating instructions via the appthe mobile app mo.ride via Google Play and AppStore (free of charge)
ATTENTION: The delivery does not include a speedometer. This must be ordered separately.See accessories article in this description.
Zubehörartikel
Speedo Box LC
CB12215M
/ RS0
From
€495.00*
With the Peak Mod Speedo Box LC it is possible to connect all Motogadget speedometers to the water cooled Triumph Modern Classic models (to date the boxes are not yet available for all Euro 5 models. But some are already available. To be on the safe side, you can ask us for the availability for your bike before ordering).
We have the box selbest already installed on some motorcycles and it works really well. The assembly and wiring are really well described and understandable. Assembly instructions and cable assignment diagram can also be found as a download under the downloads in this description. So you can get an idea of the effort in advance.
The speedometer box we recommend to mount under the tank of the motorcycles, there is enough space and all cables are very easy to lay.The box is available as a single & dual version. Single: For all models that have only one speedometer installed from the factory. Dual: For all models that have factory installed a speedometer & tachometer.Please specify your motorcycle model + year in the comment field (on the last page in the ordering process) when ordering.
For Triumph Bobber & Speedmaster we also offer a mounting plate, with which you can mount a Motogadget Tiny - Speedster - Vintage speedometer on the triple clamp (see accessory article in this description).For all other models you have to build a plate yourself.
Note on the grip heater: If the speedometer box is installed, the original grip heater no longer works (another module is required for this).
We sell the box in 2 versions:1. as a bundle at a discounted price of 100€ (this price is only granted if a Motogadget speedometer instrument is also ordered from us).2. single only the box.
Models available :
VIS-T Single
Street twin 2016-2018
Street twin 2019-2020
Street twin 2021-2024 EURO-5 / Speed twin 900 2024
Street scrambler 2016-2018
Street scrambler 2019-2020
Street scrambler 2021-2024 / Scrambler 900 2024
Bobber 2016-2020
Bobber 2017-2020
Bobber 2021-2024 EURO-5
VIS-T Dual
T100 2016-2020
T100 2021-2024 EURO-5
T120 2016-2020
T120 2021-2024 EURO-5
Thruxton 1200
Thruxton R EURO-4 Thruxton RS
Speed Twin 1200 2019-2021 EURO-4
Speed Twin 1200 2021-2024 EURO 5
Street cup 2016-2018
*NOT SUPPORT LIST.
All Speed master.
Bobber TFC
Motogadget holding plate for Chrono Classic, Tiny & Speedster
CB10737M
/ RS152
From
€39.95*
Fits for Triumph Bonneville, Scrambler & Thruxton. (Does not fit for Scrambler who are before BJ 2010.
The holder is suitable for the big chrono and the little Tiny as well as the Speedster
black
Outside Cup for CHrono Classic Speedo
CB00211M
/ RS101
From
€59.00*
Outside Cup for the Motogadget Chrono Classic Speedo.
Streamline Cup for Chrono Classic
CB00237
/ RS600
€175.00*
Colour:
Polished
|
Measure:
22mm
The msc Streamline-Cup for 1 inch handlebars is suitable for the assembly of all Classic instruments. Elaborately turned from the solid / milled and highly polished Streamline Cup. Stable attachment with handlebar clamp to 1 inch / inch handlebars. A real eye-catcher for every custom bike.
Air temperature sensor
CB00214
/ RS103
€39.00*
Lufttemperatur Geber für Motogadget Chrono Classic Tacho.
Breakoutbox
CB00216M
/ RS8
€199.00*
Motogadget. Break-Out Box. For connecting Motogadget instruments to the injection models with electronic speedometer. Tested by us for 2010/11+2012/13/14/15. Please state motorcycle type and chassis number when ordering! It does not need to be soldered, but must be connected consistently according to our enclosed instructions.
The CAN bus installed in the Triumph models reacted immediately by refusing to work if the original instrument was no longer connected. This meant that the desired conversions were hardly possible at this point. The solution, especially for the Twins, is now exclusively available: the mo.tri from motogadget. In addition to information such as speed and rpm, the mo.tri also provides signals for indicator lights: Blinker left/right, tank reserve, fault memory, high beam, neutral, H2O hot, oil pressure.
Some indicator lights on instruments with 4 or 5 LEDs have multiple functions. Another big advantage is the almost foolproof installation! The original connector is used and the cables for the instrument and indicator lights are connected to the terminals of the mo.tri using a color scheme. No soldering or searching for cables required. No intervention in the wiring harness. No loss of vehicle warranty. Fast Plug 'n Ride, it couldn't be easier. A big time saver and therefore worth hard cash.
PLEASE STATE YEAR OF MANUFACTURE AND CHASSIS NUMBER!
