HeckWeck Kit - Scrambler 1200
Classicbike-Raisch rear Weck Kit for Triumph Scrambler 1200 models.
Made in Germany!
Road Traffic Regulations compliant - Legal!
Probably the cleanest & most minimalistic rear kit that is available for the Scrambler 1200! It took us a long time to finish the rear kit for the Scrambler 1200, but the many days of work and countless prototypes were worth it!
The kit provides a completely free rear end, which makes any Scrambler look much more brutal. The nice short frame makes the Scrambler look much more compact and beefy.
The HeckWeck kit is supplied as a complete kit. It includes:
- Aluminum rear under fairing (which provides for a very good splash protection, as well as a very clean look. The cheap original plastic also disappear)
- License plate holder + Vario bracket (license plate is adjustable in the angle) / The license plate plate is 170 x 100mm large, so that each license plate size of each country is covered
- LED license plate light
- All screws, nuts, cable ties etc. needed for mounting
- Detailed step by step assembly instructions, which allows even hobbyists to easily assemble the kit
The absolutely coolest thing about the rear end is that we have trimmed something to be able to realize the kit legally. Due to the short rear end of the Scrambler, it is not possible to construct a license plate holder that adheres to the specified 30 ° angle and at the same time ensures that the license plate does not make contact with the rear wheel when the motorcycle times really strong compression.
So we came up with an ingenious adjustment for the license plate that makes it possible to adjust the angle of the license plate.
This allows the license plate to be set a little steeper in continuous operation, which of course also looks visually more awesome. For the TÜV visit or a traffic control is a seconds quick grip with some force on the license plate and everything is legal. See picture 4 & 5
The supplied stop nuts ensure that the license plate can not inadvertently adjust while driving.
The kit does NOT include a central tail light, this must be ordered separately.
Here you have several options to choose from:
- Option 1: You order a set of 3 - 1 turn signals + turn signal holder in addition and mount these on the right and left side of the license plate (100% legal solution). Below the description you can order the turn signals (in the bundle we give you 10% discount on the turn signals) and the turn signal holder directly in the set with it.
- Option 2: You order the Shorty taillight + weld-in housing, insert a mini LED taillight in the original rear frame and install normal turn signals. Visually, this is a very elegant solution, but of course much more expensive. The Shorty taillight and the housing can be found below the description and can be ordered as a set.
Additional accessories that you can order below the description in the set:

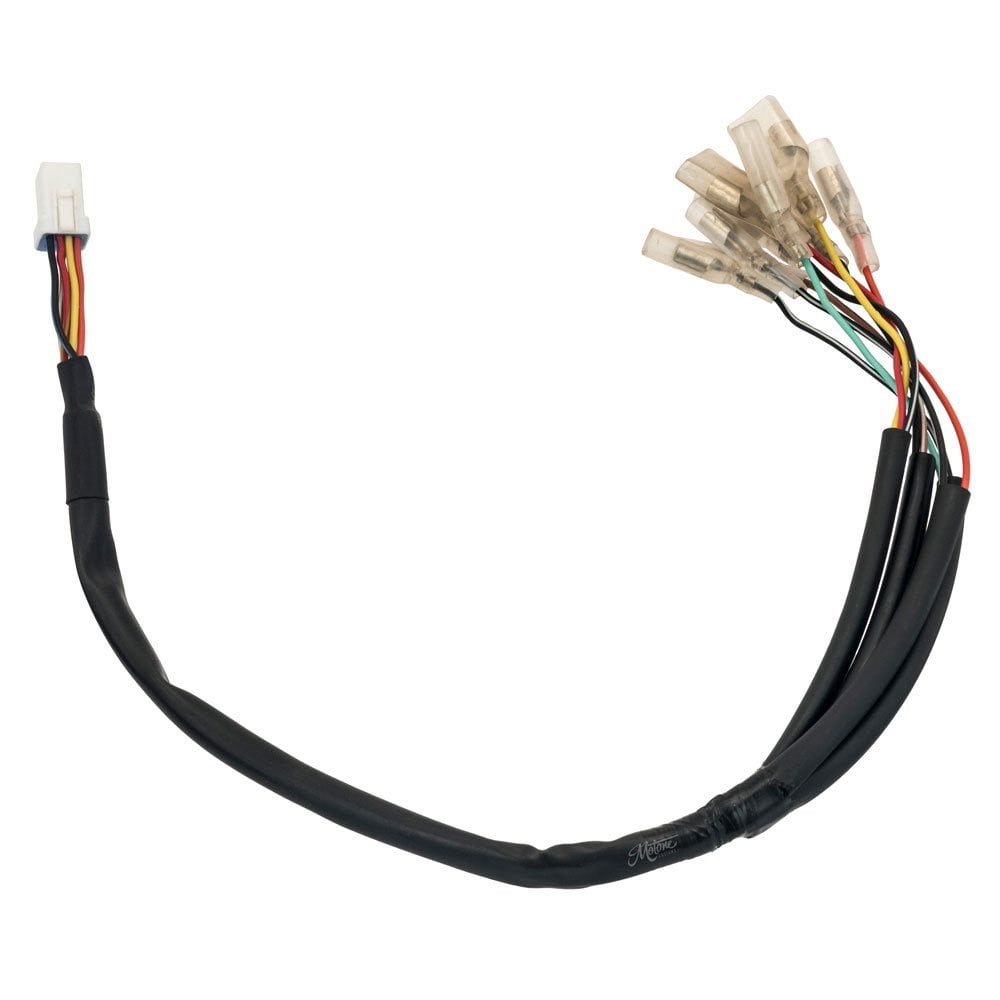

- Cable set: We recommend you to order this in any case! If you don't have it, the original Triumph central connector has to be cut off and you have to wire everything separately. On the cable set you get, if you order it in the set with 30% discount!
- Turn signal holder: Here are 2 different to choose from.
- The Vario turn signal holders are screwed together with the license plate on the license plate holder and can be adjusted in width, so they can be adjusted to fit any country, any turn signal (with 8mm thread - most turn signals have) and any license plate size.
- The turn signal adapters - Scrambler 1200 are attached to the frame of the Scrambler, making the turn signals very inconspicuous (but are still in a legal position). This variant is only legal in kombiantion with a central taillight (because the taillight may not slide so far into the rear and 3-1 turn signals would not be legal at this point). - License plate screw set: Who wants to fix his license plate with matching colored screws, which can order a set with it.
- Reflector: Who wants to have a 100% legal rear, which must mount a reflector with under the license plate.
| Triumph LC ab 2016 |
Scrambler 1200 XC / X EU 4
Scrambler 1200 XC / X EU 5
Scrambler 1200 XC / X EU 5+
Scrambler 1200 XE EU 4
Scrambler 1200 XE EU 5
Scrambler 1200 XE EU 5+
|
|---|
