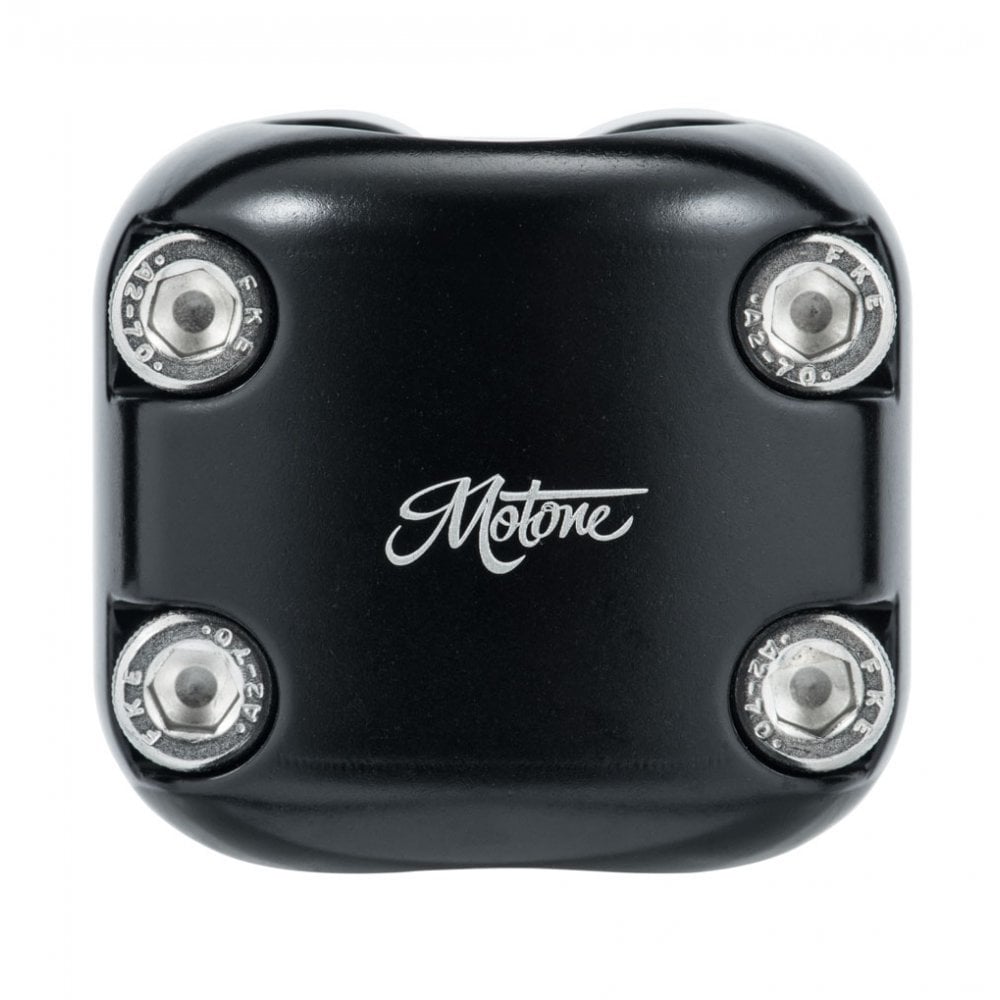

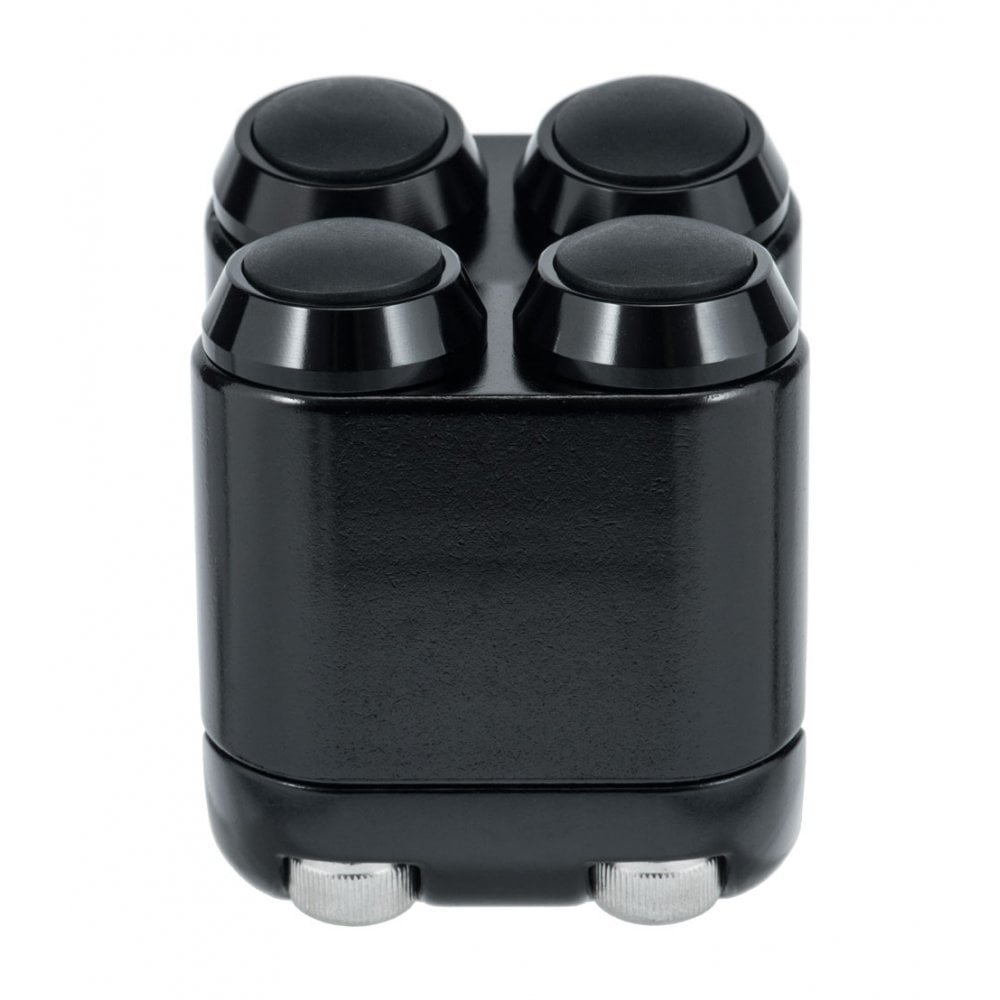

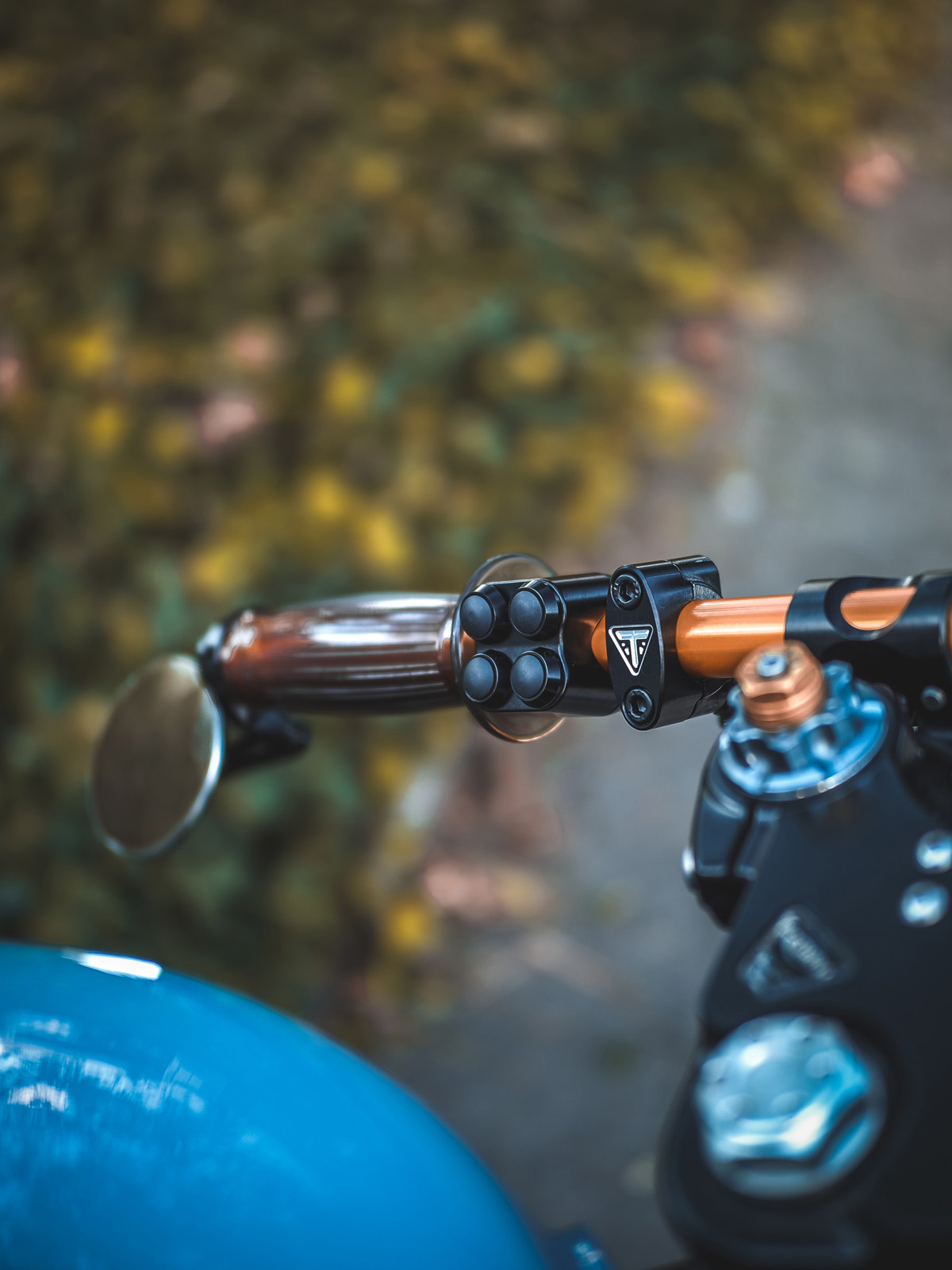

Fitting push button / 4 buttons

The Motogadget Mo.Unit Blue allows you to mount dashboard buttons in place of the large original dashboards on your motorcycle. In addition, the Mo. Unit offers many other possibilities (such as connecting your motorcycle to your smartphone via the Motogadget app). If you are only interested in replacing the original dashboards with the buttons, we recommend the D Box from our range (this is cheaper and easier to install / see similar articles in this description). The connection and adjustment of the boxes is not easy. A good technical understanding should be available in any case, since we do not provide a plug & play solution with wiring diagram, etc..Please have a look at the description of the Mo.Unit (you can find it below this description under the downloads). We offer various buttons to choose from, which you can mount on the handlebar of your bike. Count on your bike how many buttons you need. Some buttons can be used twice (e.g. turn signal left can also mean turn signal off at the same time). If you press the button once, the motorcycle flashes, if you press it again, the turn signal is off again). You can find the different buttons under the accessories in this description. Other accessories such as the Mo.Button / cable sets etc. are on request of course also available from us.   Manufacturer specifications: The new mo.unit blue has been further developed and significantly improved compared to the proven previous version. It now has 12 inputs and 10 outputs, interchangeable quality cable clamps and most importantly Bluetooth® LE. This allows the mo.unit blue to connect directly to our app 'mo.ride' on the smartphone. This functionality is unique in the motorcycle accessory sector. The entire setup and the alarm system can be controlled via the mo.ride app. Fault diagnosis is also possible during operation and without removing the mo.unit. Likewise, a secure, encrypted keyless-go function can be used. When activated, approaching the vehicle with one's own smartphone is sufficient to put the vehicle into start readiness. Thus, the on-board power can be switched on by pressing the start button. Pressing it again then starts the engine. Once switched on, the on-board power remains safely activated while driving, even without a phone. The mo.unit blue is the digital control unit for a motorcycle, the heart of the entire vehicle electrical system. It can be operated with push-button fittings or with conventional, switching handlebar fittings. It switches all necessary components on the vehicle and at the same time it takes over the tasks of the electrical fuses. Relays and individual components in the wiring harness are greatly reduced and a new, minimized wiring of the vehicle can be done in a very short time. When using the mo.button, the number of all switch armature connections is reduced to a single cable.  Functions WITHOUT SmartPhone: Complete digital push button control, 4-button or 5-button operation possible.Complete replacement for the fuse box. 10 independent circuits are digitally monitored and switched off in case of malfunction. After elimination of the fault, the fuse function is automatically resetIntegrated, position-independent alarm systemIntegrated, digital, load-independent flasher relay, automatic switch-off optional and adjustable, mo.wave mode selectableIntegrated hazard warning flasher systemTurn signal optionally adjustable as position lightIntegrated parking light and headlight flasherControl of low and high beam (up to 200 W switching power) with only one buttonIntegrated, digital brake light modulator, flashing mode programmableAcceleration-controlled hazard brake light (automatic warning signal)Integrated starter relay for starters with magnetic switch (up to 30 A switching capacity)Intelligent and configurable control/switching off of the consumers in order to use the maximum starting energy of the battery during the starting processIntegrated digital horn relayTwo configurable auxiliary outputs AUX1 and AUX2Diagnostic function for input assignment, output assignment, circuit switching status, short circuit diagnosis, etc.Calibration and current measurement enables defect detection of all lampsFunctions WITH SmartPhone: Encrypted connection via Bluetooth® LE (Low Energy), thus tamper-proof extremely low power consumption of smartphone and mo.unit blue (with Bluetooth active 0.9mA and in powersave mode after 6 weeks of inactivity: 0.3mA) Keyless-Go (readiness to start the vehicle by approaching it with your own smartphone)Highly sensitive accelerometer allows to display your driving activity in mo.ride through an activity factor, number of turns, top speed, etc.transmission of alarm events (with date, time, vehicle on the ground, etc.) to the appSetting of mode and sensitivity of the alarm systemMonitoring of the current battery voltage in the appDiagnosis of all inputs and outputs, measurement of currents, voltage, device temperatureDefect detection of all illuminants by calibration. Defective indicators cause doubling of the flashing frequency, status message in the app and audio notification by Rideassist.Rideassist: optional turn signal sound and error messages in real time as audio output via helmet headset.Manual switching of outputs via smartphone (except starter).Firmware updates without removal at any location via smartphone and app.Setup menu configuration without removal at any location via smartphone and appVehicle management with automatic notifications of maintenance tasks, condition of tires, chain, brake pads, oils, operating fluids, spark plugs, etc. by matching vehicle mileage via speedometer signalLogbook records trips and stores all generated vehicle messages, alarm events and maintenance tasks Display of parking position and Ping! to help with vehicle searchLIN bus connection available for later connection of suitable motogadget productsscope of delivery: mo.unit blue1 x M5 stainless steel screw2 x M5 stainless steel screw with nut1 x speedometer sensor with 2 magnetsDetailed mounting and operating instructions Translated with www.DeepL.com/Translator (free version)

The electronics box version D allows you to mount instrument buttons in place of the large original fittings on your motorcycle. The connection and adjustment of the boxes is very well described by the manufacturer and also easy to implement. A good technical understanding should be available, however, since we do not provide a plug & play solution with wiring diagram, etc.. We offer various buttons to choose from, which you can mount on the handlebars of your bike. Count on your bike, how many buttons / buttons you need. Some buttons can be used twice (e.g. turn signal left can mean turn signal off at the same time). If you press the button once, the motorcycle flashes, if you press it again, the turn signal is off again). You can find the different buttons under the accessories in this description.   Here some teschnische data from the manufacturer (Under the downloads below the description also the assembly instructions and a Youtube video to find): This control box is probably the most flexible box on the market. It controls all the most important functions on the motorcycle. The following options are possible: - Integrated flasher relay, controllable via pushbuttons or with switches.- Output for flasher control available- 2 inputs for side stand - and neutral switch are implemented- Adjustable flasher reset and limiting light function of the flasher (position light)- Control of high and low beam via push button or switch- Control of horn via push button- Control of brake light- Control LED's at the outputs for easier monitoring of the functions- Automatic recognition of an optionally available handlebar adapter in button mode. By the way, the new D-Box can also be controlled with only 2 push buttons. Therefore, no key combinations need to be memorized by the user: - A short press on one of the two buttons switches the respective turn signal on.- Another short press on one of the two buttons switches it off again. - A slightly longer press and hold (for about 0.3 seconds) on the left switches the horn.- A slightly longer press and hold (over about 0.3 seconds) on the right switches the starter.- Two short button presses on the left side switches between high and low beam.- Two short button presses on the right side switch the ignition on - or off.- A short push on both buttons at the same time switches the hazard warning lights on. The individual outputs are of course short-circuit proof and self-resetting after a short circuit.
