Fat Bar Alu Handlebar LC

Product information "Fat Bar Alu Handlebar LC"

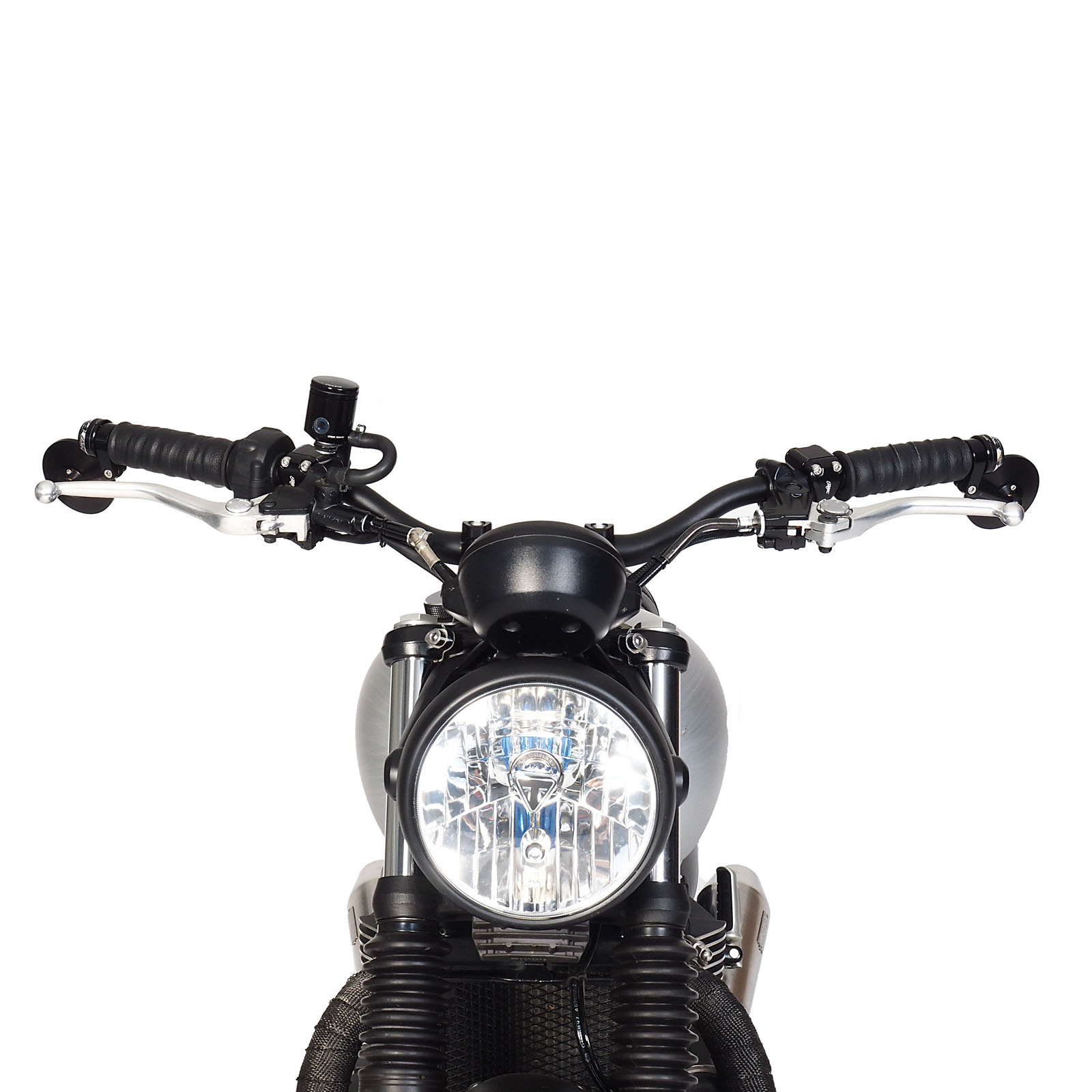

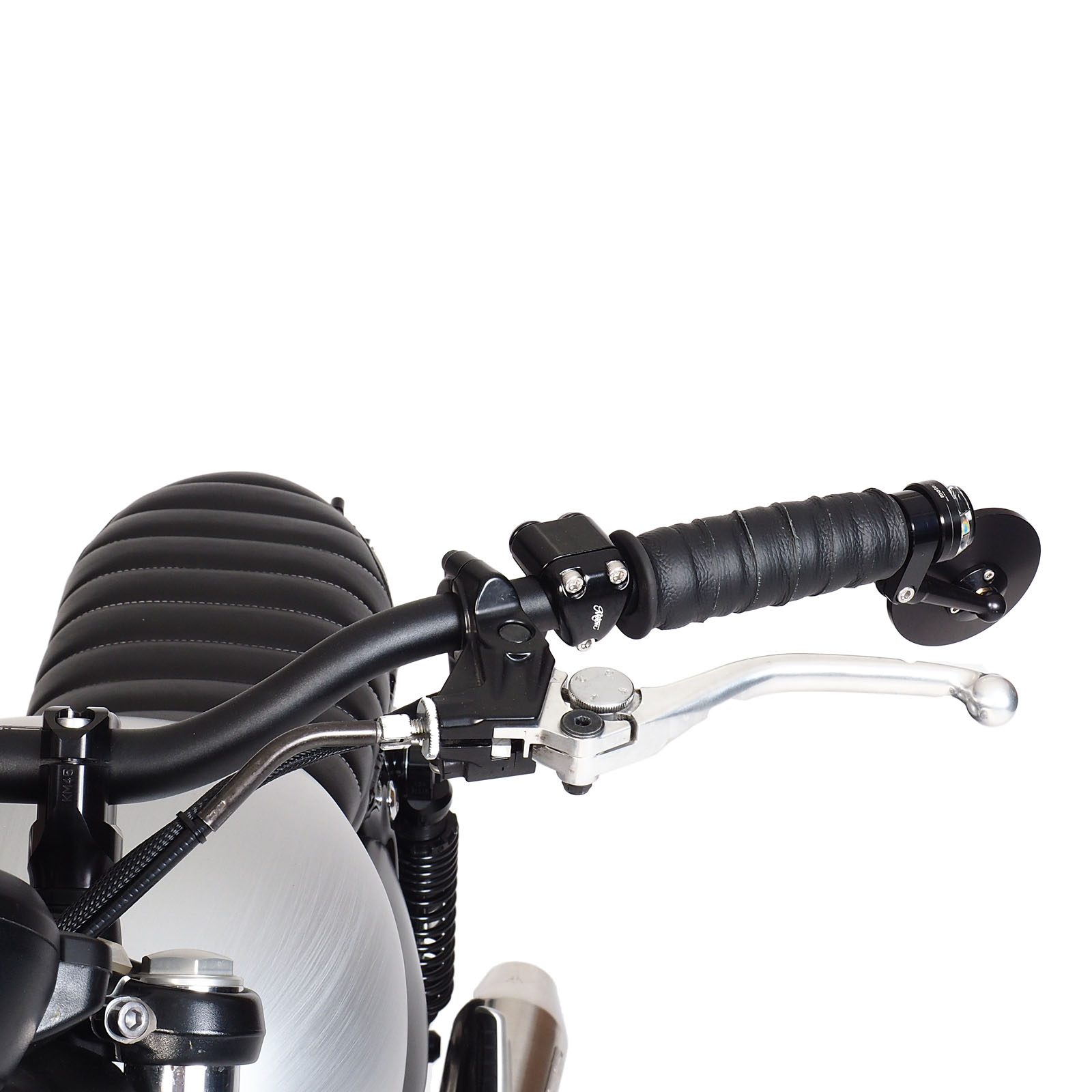

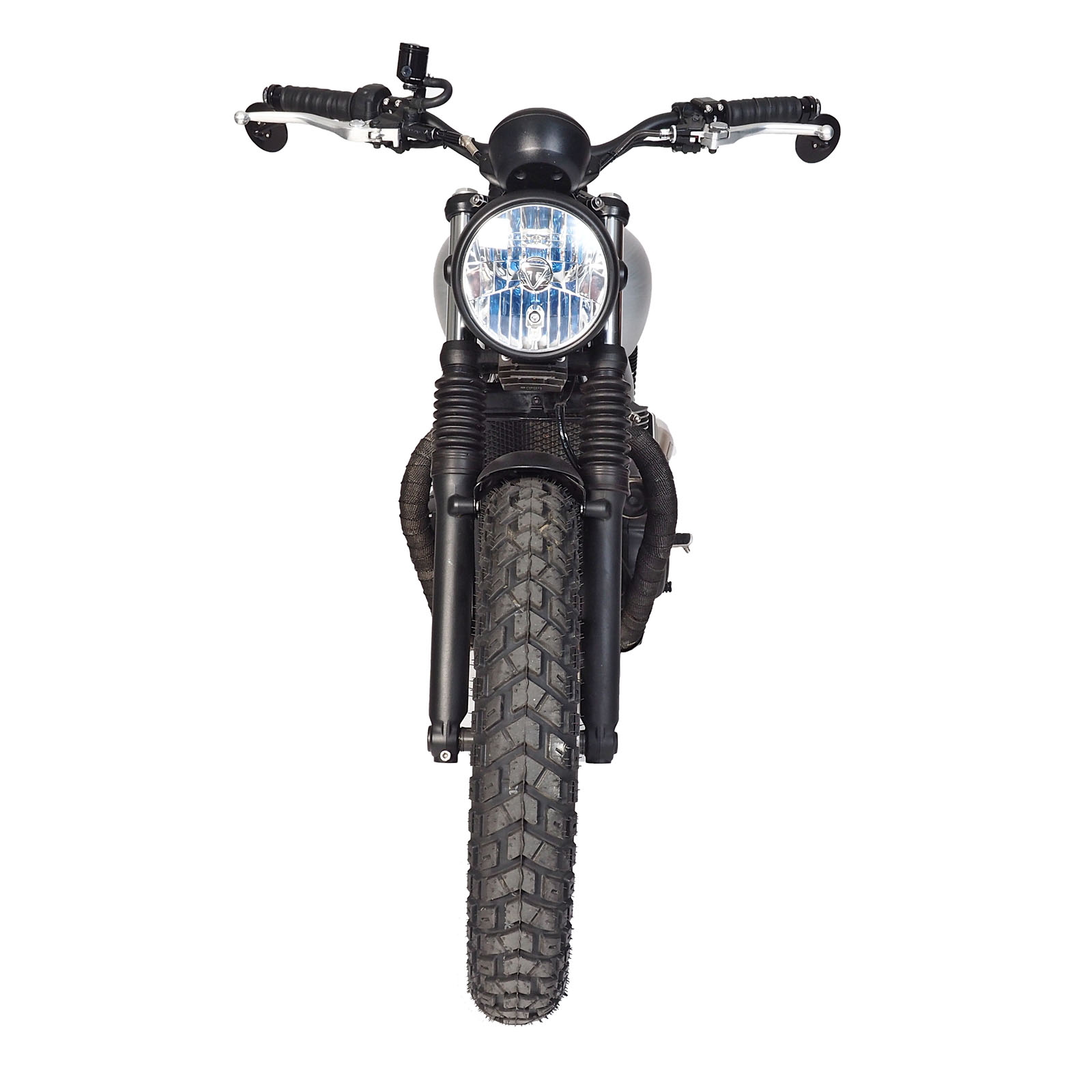

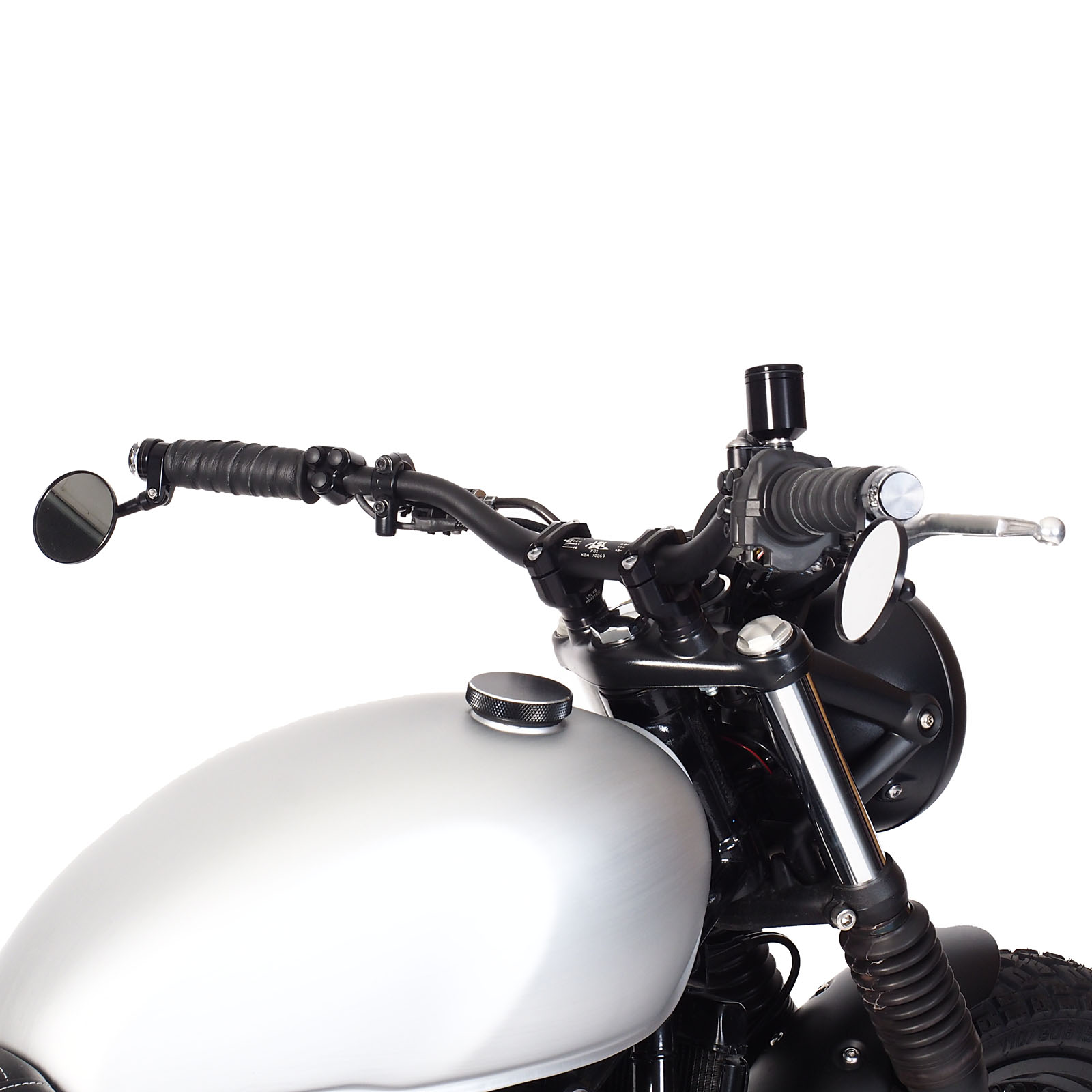

Fat bar handlebars, what does that mean? This means that the handlebars have a diameter of 28.6 mm at the clamp and then taper towards the outside and only measure 22 mm at the fittings. As a result, the handlebars and the clamping area no longer appear so small. The larger handlebars make the bike look much more grown-up and solid.

The handlebar is a very high quality LSL aluminum handlebar and has a beautiful matt blasted surface.

Street Twin / Speed Twin 900:
This handlebar looks really good on the Street / Speed 900 and also ensures a very comfortable and attractive riding position. It is slightly higher and slightly wider than the original handlebars.
This is exactly how handlebars should be on a motorcycle!
As the original 22mm clamps are naturally too small, new risers are also required (see accessories in this description).
In addition, the original brake line of the Street models is no longer long enough (we have an extension for this in our range, see accessories in this description). All other cables and wires are long enough.

Street Scrambler / Scrambler 900:
Here too, the handlebars make a very good visual impression. The handlebars are slightly flatter and slightly narrower than the original. However, the handlebars are much nicer / more inconspicuously cranked and blend in better with the overall appearance of the Scrambler.
The new handlebar clamp is not mandatory for this model. However, it can be fitted as an option for visual reasons.



Handlebar dimensions: 760x70x155mm

Triumph LC models from 2016:
  • Street Cup
  • Street Scrambler
  • Street Twin
Triumph LC ab 2016
Street Cup
Street Scrambler / Scrambler 900 EU 4
Street Scrambler / Scrambler 900 EU 5 - Street Scrambler / Scrambler 900
Street Twin / Speed Twin 900 EU 4
Street Twin / Speed Twin 900 EU 5 - Street Twin / Speed Twin 900
1
1
1
1

Please enter a valid email address.
Please enter a valid question.
Fields marked with * are mandatory.

There aren't any asked questions yet.

Zubehörartikel

Drilling template fittings / handlebars 22mm CB11954 / RS600
When installing a new handlebar or stub on all Triumph models with standard 22mm or FatBar (inside thick outside 22mm) handlebars, it is necessary to make two holes in the new handlebars. Over it the original fittings are then locked. Because it is not easy to drill a hole in round material (like a handlebar) and they have to be exactly opposite, we offer this drilling template. This is simply put around the handlebars and screwed together. So it is very easy to drill the two holes exactly opposite each other.

€34.95*
Brake line extension 40mm Street models CB11750 / RS20
40mm long brake line extension for the Triumph Steet Twin models. With this extension you have the possibility to mount a wider handlebar, e.g. the Fat Bar handlebar (see accessories in this description). M10 x 1.25

€14.95*

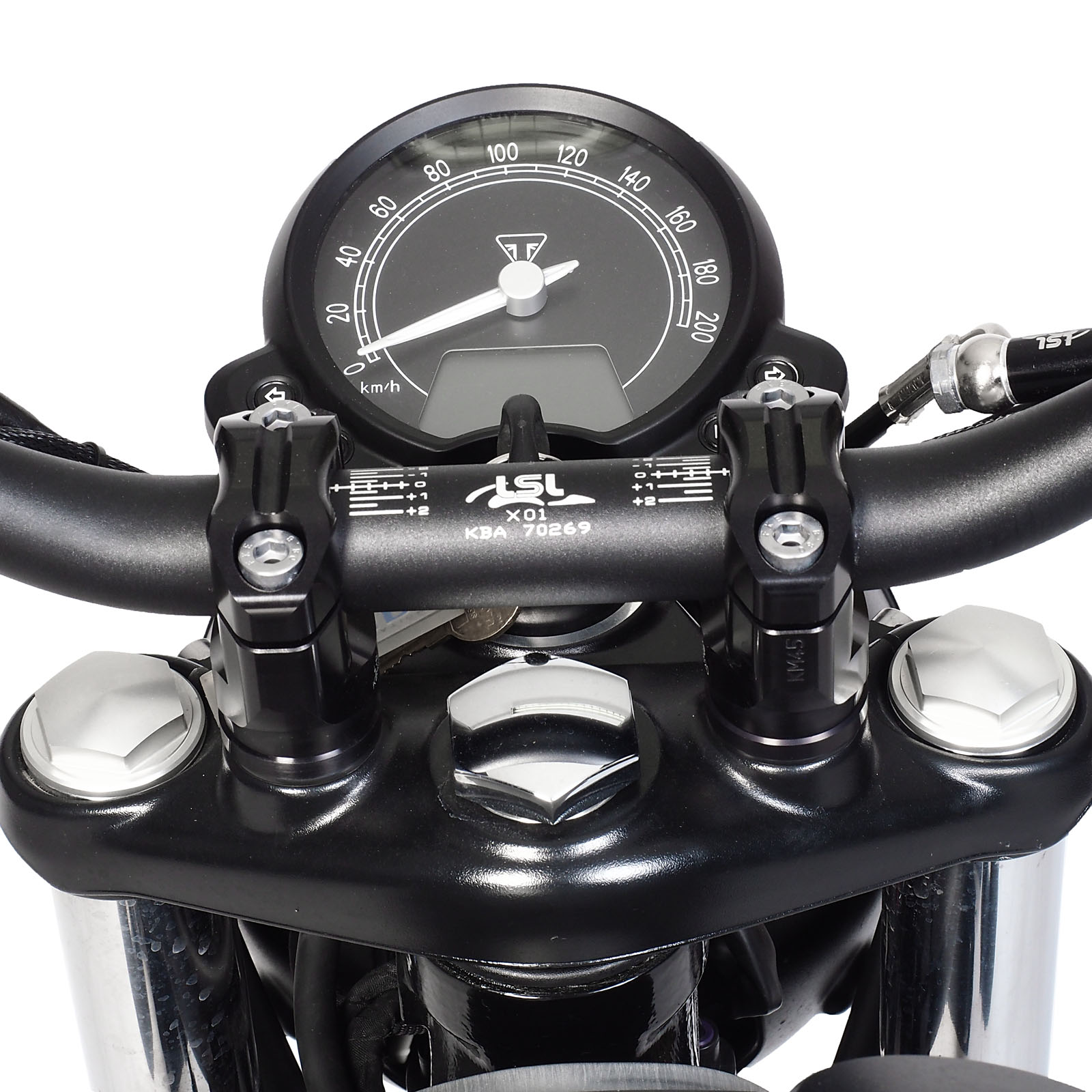

Handlebar Riser FatBar StreetTwin CB10889M / RS600
Handlebar riser FatBar StreetTwin, Cup & Scrambler +5 mm Silver. Suitable for FatBar handlebars. These risers are needed to mount the beautiful Fat Bar handlebars on the Street models. Fat Bar handlebars are 28.6 mm thick in the middle and let the motorcycle look much more adult, because such a 22mm handlebars already looks very puny. To the outside to the fittings run the handlebars then again conical to 22mm. The risers are delivered with an ABE (see download in this description). Models that are not listed in the ABE, can be registered at the TÜV by individual acceptance.

From €104.95*
