Motoscope Pro Tacho

€399.00*

Prices incl. VAT plus shipping costs

Available, delivery time: 1-3 days

product-image
Zubehörartikel
from €495.00*
€69.00*
€49.95*
Product number: CB12529
item number: 1005030
Product information "Motoscope Pro Tacho"

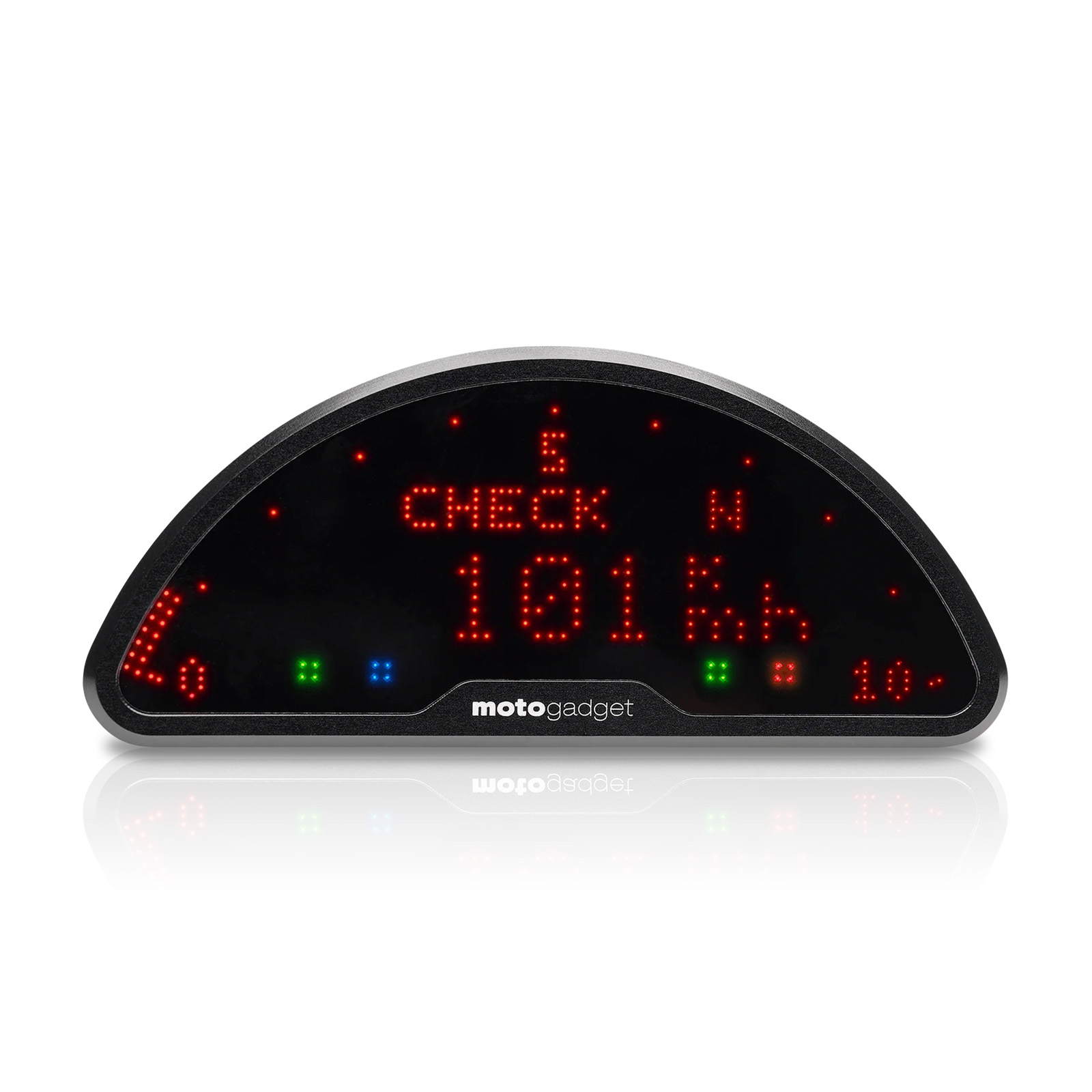

The Motogadget motoscope Pro speedometer instrument is the right speedometer for all those who like something more modern. Optically perfect for sporty conversions such as a Triumph Racer Bobber.

Attention: to connect the speedometer you need additional modules (see below in the description).

The motoscope pro impresses with its ultra-flat housing design. 734 LEDs, controlled by a 16bit Risc processor, form the almost fully self-illuminating display matrix. It ensures optimal readability - even in direct sunlight. Automatic brightness adjustment is a matter of course. An analogue LED band with drag pointer function displays the speed in a freely scalable manner. The main and secondary displays can be configured by the user. Another display area shows the gear engaged. Four indicator lights are already integrated and can be used for many more input signals with the help of the display. For the connection of the indicator lights and/or the measuring inputs, the Breakout Box A is additionally required.

The motoscope pro has a complete CAN bus interface and is thus prepared for many future developments of plug 'n ride solutions.

The aluminium housing is milled from solid aluminium, anodised and can be easily mounted by two threaded bushes on the back. The instrument has an ABE and does not need to be registered.

Please order the breakout box for connecting indicator lights separately. (see accessory article in this description)



Scope of delivery:

Instrument with approx. 75 cm connection cable
Mini-button
flying fuses
6 cable end connectors
Speedometer sensor (M5 x 0.5 fine thread, stainless steel, IP 68) with 150 cm connection cable
2 strong neodymium mini magnets
2 M3 fastening screws with washer
QR code for mounting and operating instructions

Triumph LC
  • Zur Montage eines Motogadget Tachos an einer der Wassergekühlten Triumph Modern Classic Modelle ist es zwingend notwendig die Zusätzliche Tacho Box LC zu verbauen.
    Diese findet ihr unter den Zubehörartikeln in dieser Beschreibung.
  • Für alle Modelle muss kann man sich das universal Halteblech als Basis bestellen.
  • Für Triumph Bobber & Speedmaster haben wir ein Plug & Play Halteblech im Angebot.
  • Es wird zusätzlich die Breakout Box A benötigt.
Triumph LC ab 2016
Bobber 16" / Bobber Black EU 4
Bobber 16" / Bobber Black EU 5
Bobber 19"
Bonneville T100 EU 4
Bonneville T100 EU 5
Bonneville T120 EU 4
Bonneville T120 EU 5
Scrambler 1200 XC / X EU 4
Scrambler 1200 XC / X EU 5
Scrambler 1200 XC / X EU 5+
Scrambler 1200 XE EU 4
Scrambler 1200 XE EU 5
Scrambler 1200 XE EU 5+
Speed Twin 1200 EU 4
Speed Twin 1200 EU 5
Speedmaster EU 4
Speedmaster EU 5
Street Cup
Street Scrambler / Scrambler 900 EU 4
Street Scrambler / Scrambler 900 EU 5 - Street Scrambler / Scrambler 900
Street Twin / Speed Twin 900 EU 4
Street Twin / Speed Twin 900 EU 5 - Street Twin / Speed Twin 900
Thruxton 1200
Thruxton 1200 R
Thruxton 1200 RS
600
600
600
600

Please enter a valid email address.
Please enter a valid question.
Fields marked with * are mandatory.

There aren't any asked questions yet.

Zubehörartikel

Speedo Box LC
Speedo Box LC CB12215M / RS0
With the Peak Mod Speedo Box LC it is possible to connect all Motogadget speedometers to the water cooled Triumph Modern Classic models (to date the boxes are not yet available for all Euro 5 models. But some are already available. To be on the safe side, you can ask us for the availability for your bike before ordering). We have the box selbest already installed on some motorcycles and it works really well. The assembly and wiring are really well described and understandable. Assembly instructions and cable assignment diagram can also be found as a download under the downloads in this description. So you can get an idea of the effort in advance. The speedometer box we recommend to mount under the tank of the motorcycles, there is enough space and all cables are very easy to lay.The box is available as a single & dual version. Single: For all models that have only one speedometer installed from the factory. Dual: For all models that have factory installed a speedometer & tachometer.Please specify your motorcycle model + year in the comment field (on the last page in the ordering process) when ordering. For Triumph Bobber & Speedmaster we also offer a mounting plate, with which you can mount a Motogadget Tiny - Speedster - Vintage speedometer on the triple clamp (see accessory article in this description).For all other models you have to build a plate yourself.  Note on the grip heater: If the speedometer box is installed, the original grip heater no longer works (another module is required for this). We sell the box in 2 versions:1. as a bundle at a discounted price of 100€ (this price is only granted if a Motogadget speedometer instrument is also ordered from us).2. single only the box. Models  available :     VIS-T Single  Street twin 2016-2018 Street twin 2019-2020 Street twin 2021-2024 EURO-5 / Speed twin 900 2024 Street scrambler 2016-2018 Street scrambler 2019-2020 Street scrambler 2021-2024 / Scrambler 900 2024 Bobber 2016-2020 Bobber 2017-2020  Bobber 2021-2024 EURO-5   VIS-T Dual T100 2016-2020 T100 2021-2024 EURO-5 T120 2016-2020 T120 2021-2024 EURO-5  Thruxton 1200 Thruxton R EURO-4 Thruxton RS Speed Twin 1200 2019-2021 EURO-4 Speed Twin 1200 2021-2024 EURO 5 Street cup 2016-2018   *NOT SUPPORT LIST. All Speed master. Bobber TFC

From €495.00*
Details

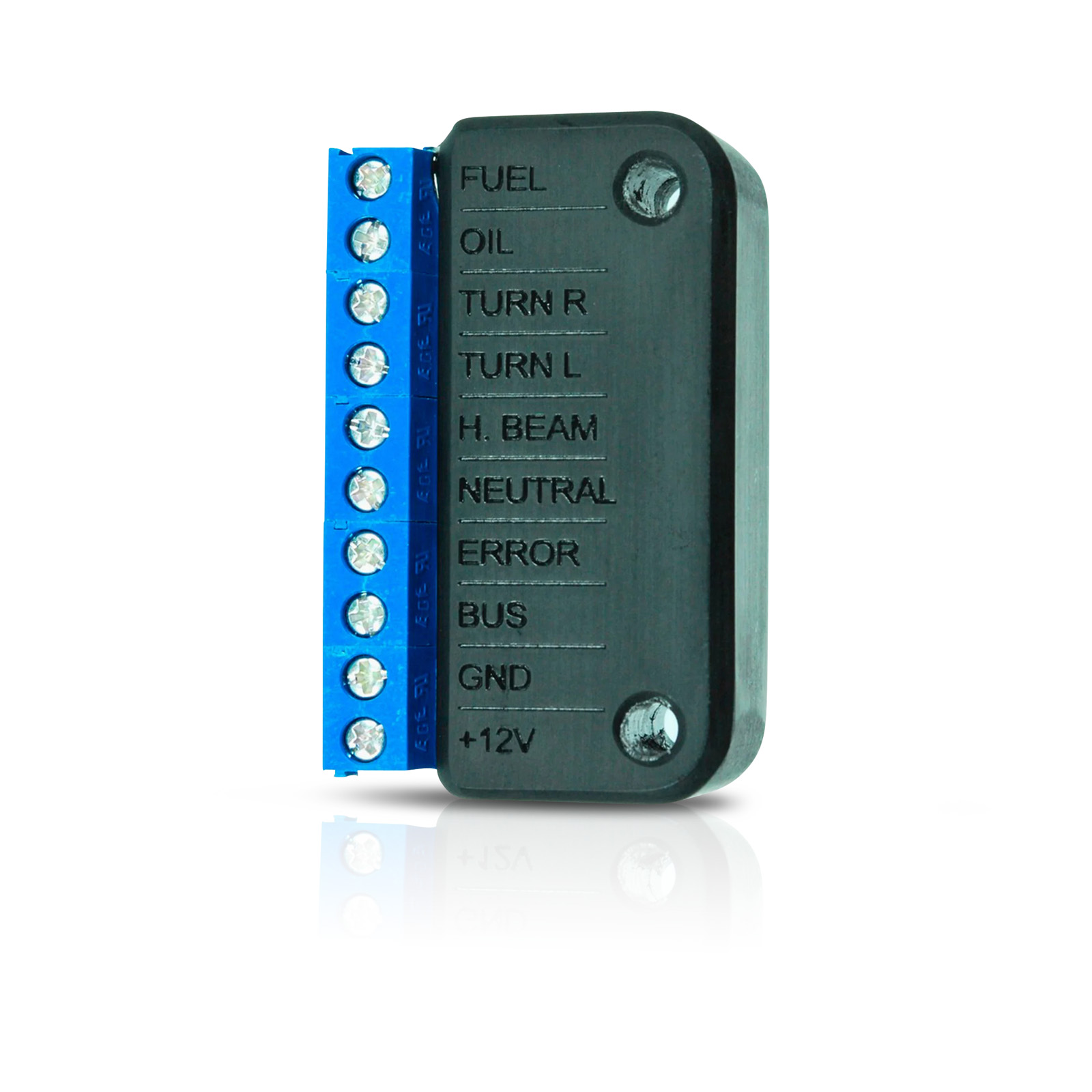

Breakout Box A
Breakout Box A CB12530 / RS0
The Motogadget Breakout Box is additionally required to connect the Motoscope Pro instrument.

€69.00*
Motogadget Tiny Bracket Bobber
Motogadget Tiny Bracket Bobber CB12528 / RS0
Plug & Play speedometer bracket for mounting a Motogadget Tiny / Speedster / Vintage speedometer on a Triumph Bobber or Speedmaster. The scope of delivery includes all screws and sleeves that are needed for mounting. To get a clean finish and a nice look, we recommend to order the Motogadget outer cup (see accessories article in this description).

€49.95*
